ANGLED LEVELLING BAR - Skid Steer Coupler

$3,032.00

ANGLED LEVELLING BARS - WITH SKID STEER/TRACK LOADER COUPLER Couple your Skid Steer into the Angled Levelling Bar, giving a... Read more Read more

Description

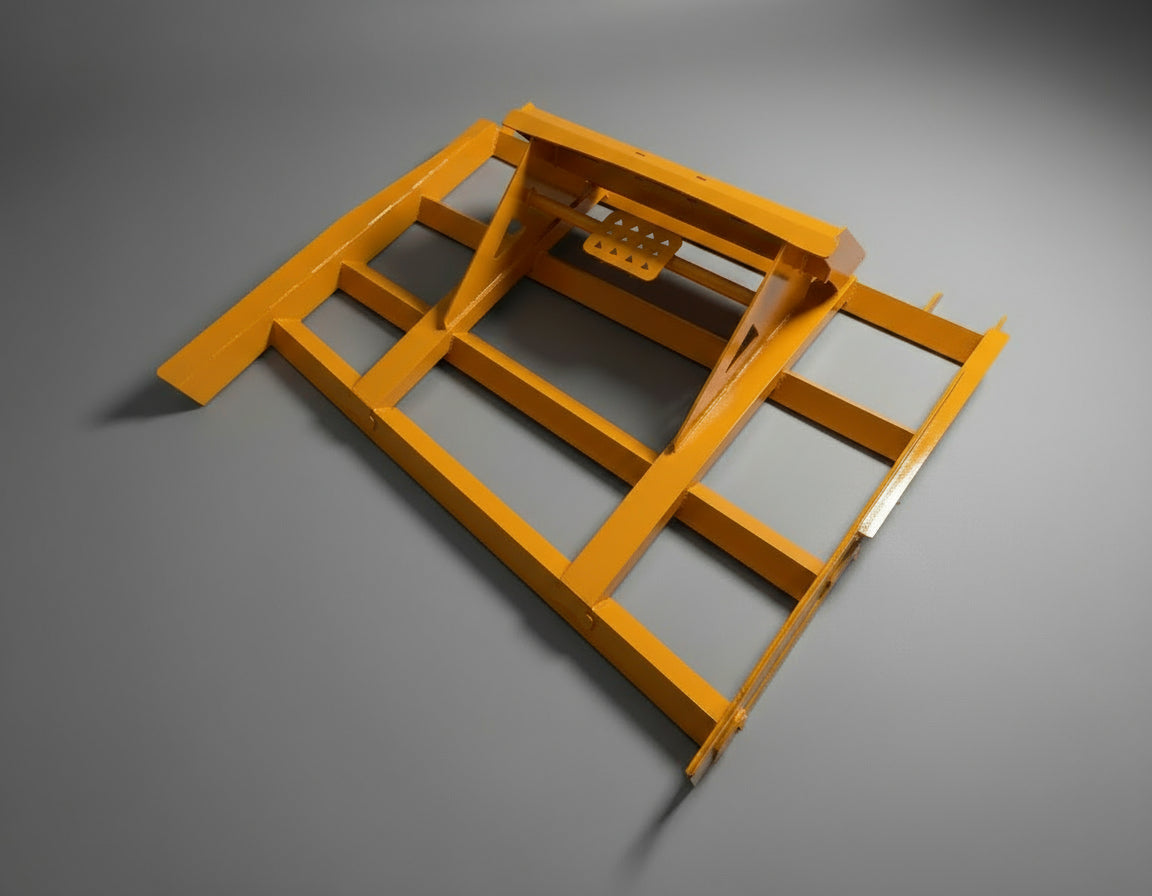

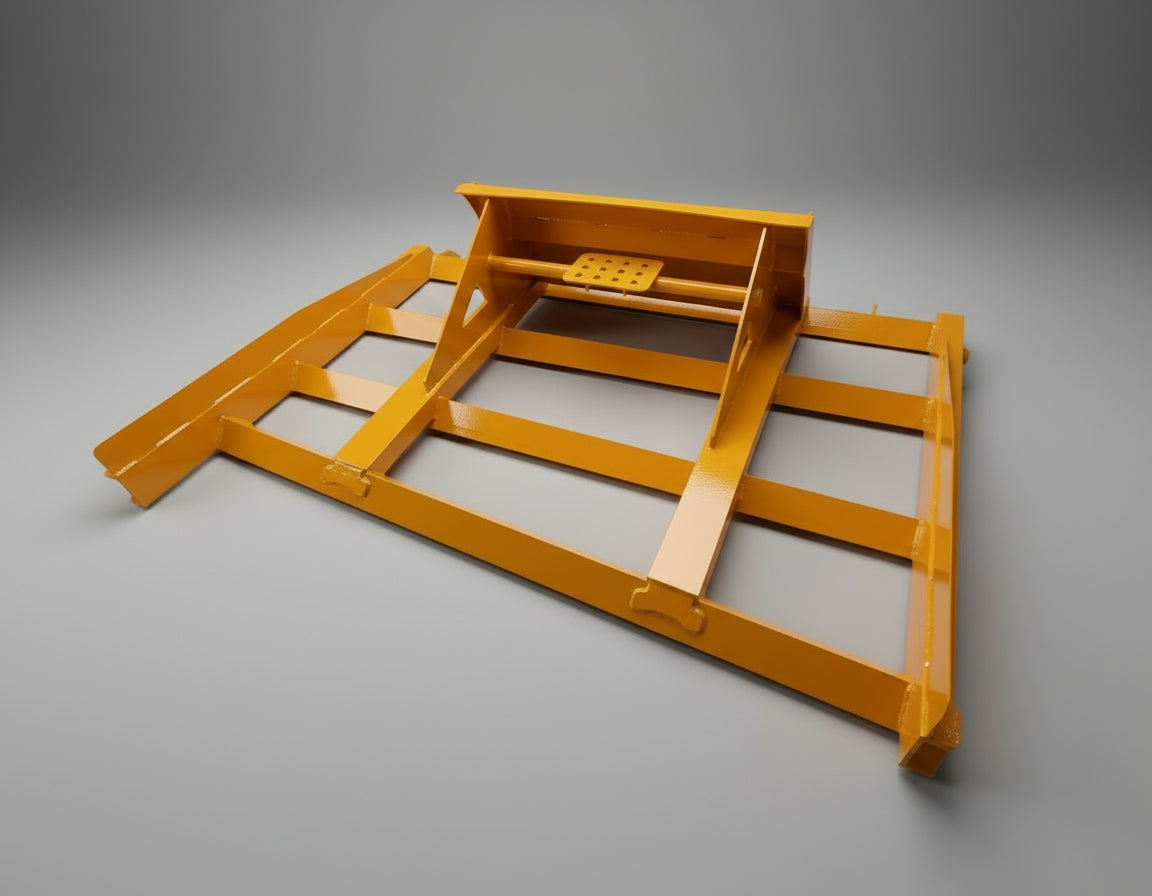

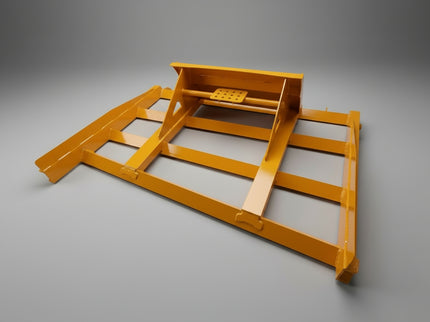

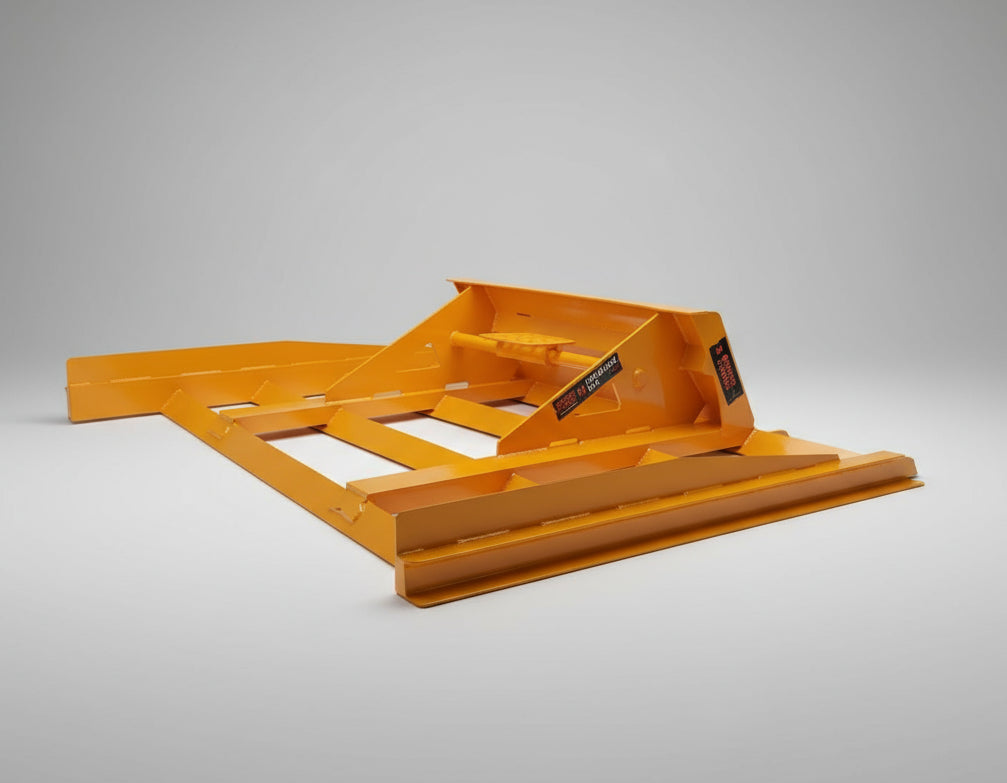

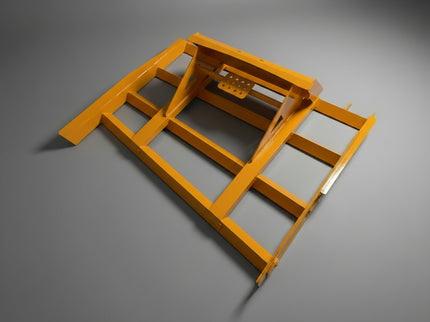

ANGLED LEVELLING BARS - WITH SKID STEER/TRACK LOADER COUPLER

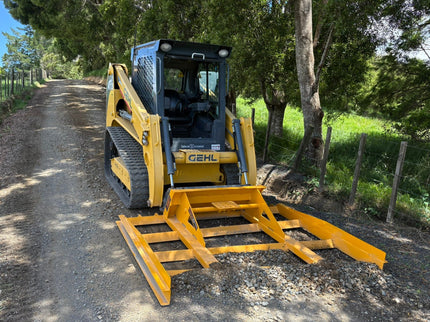

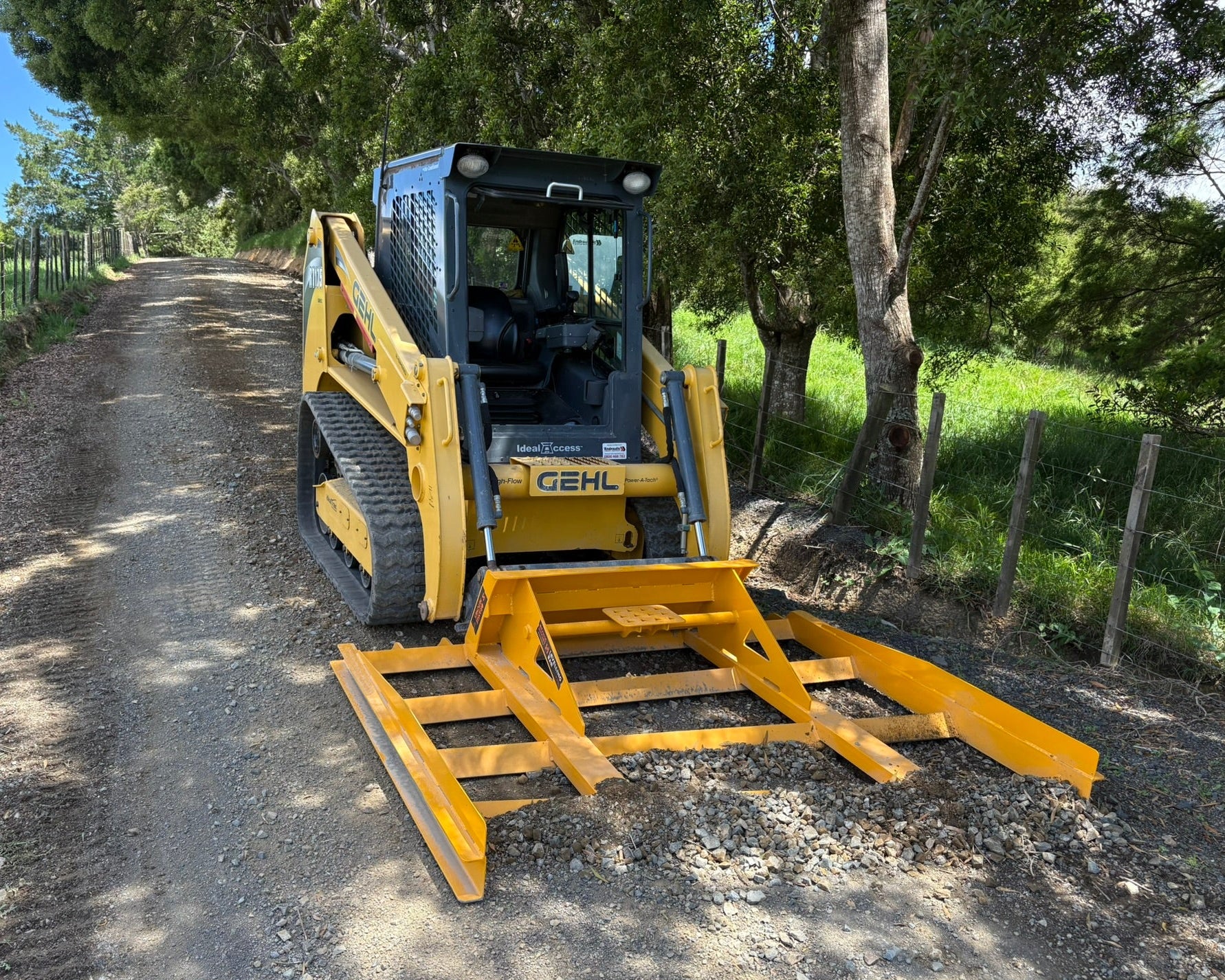

Couple your Skid Steer into the Angled Levelling Bar, giving a very firm, tight and exact control for the operator. With the first two cross bar angled this sweeps or moves material from the left to right, perfect for gravel drive maintenance.

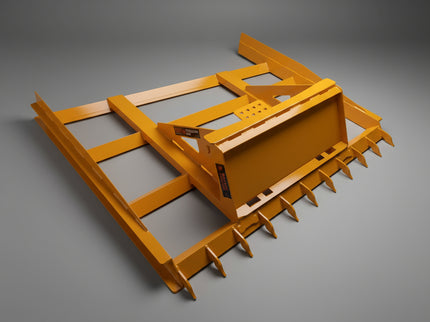

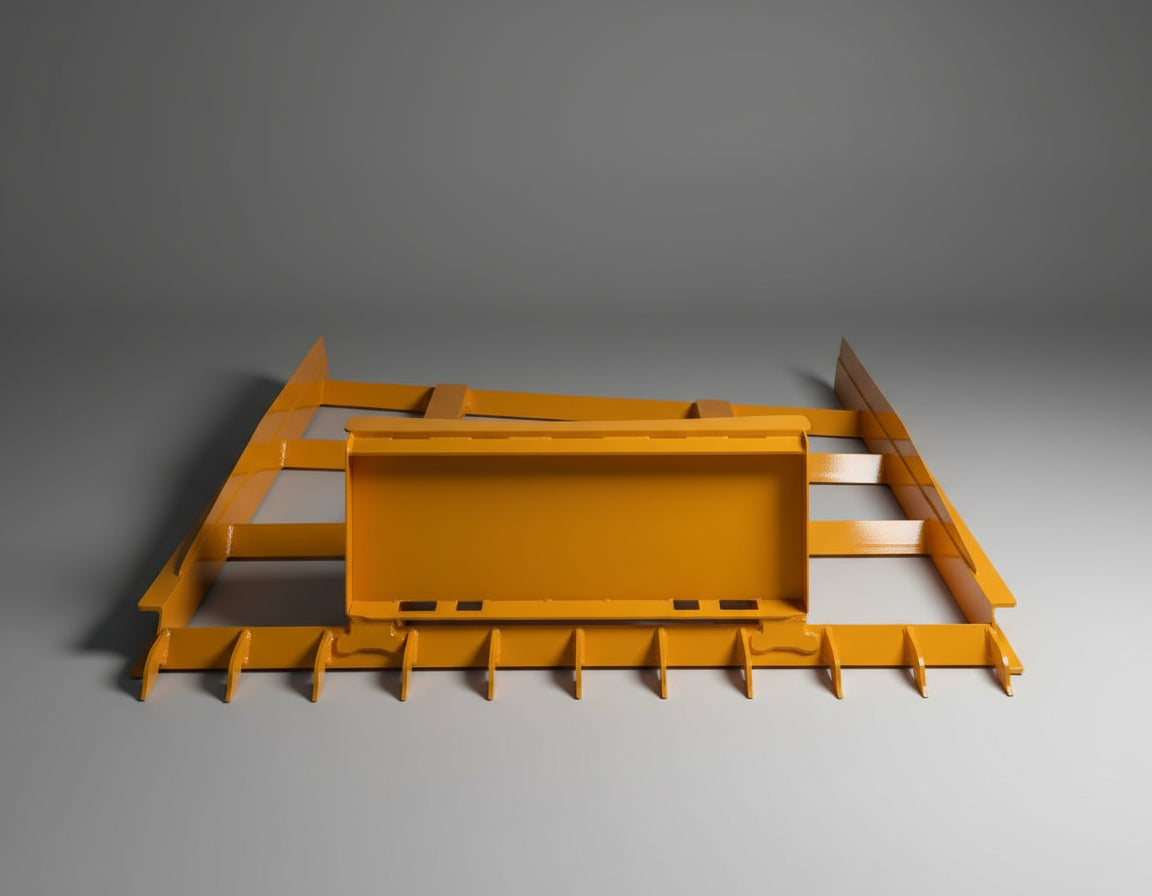

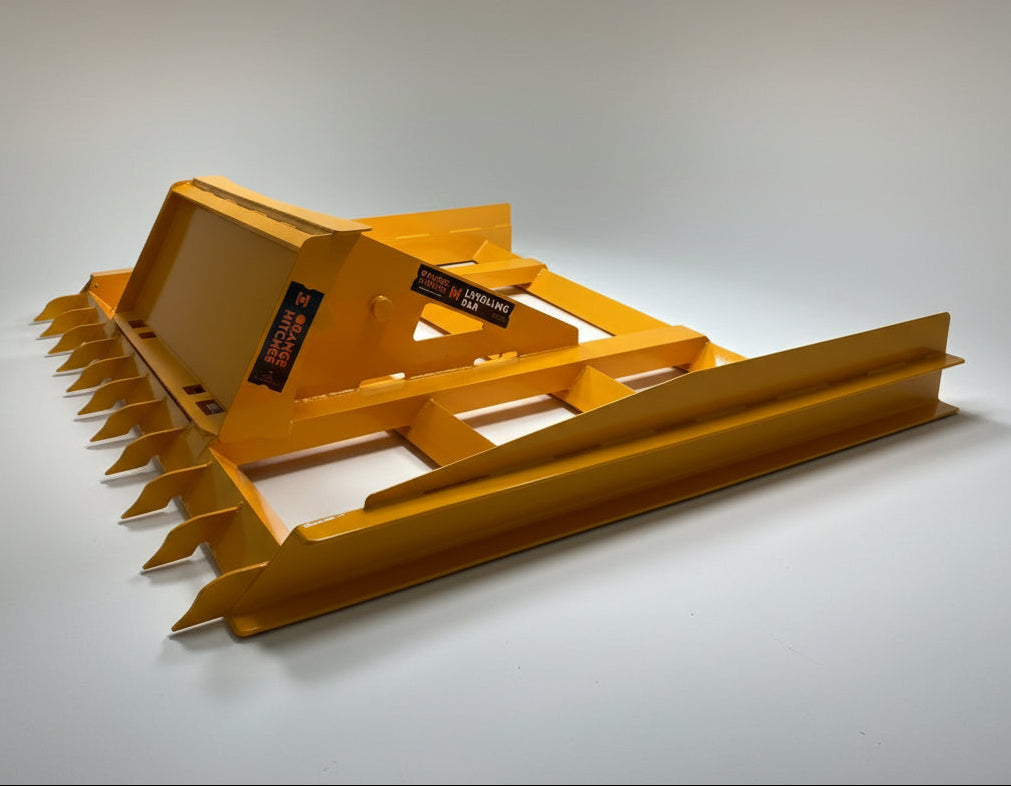

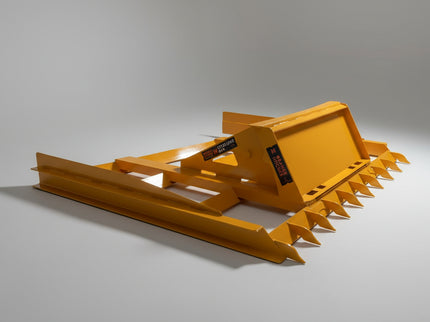

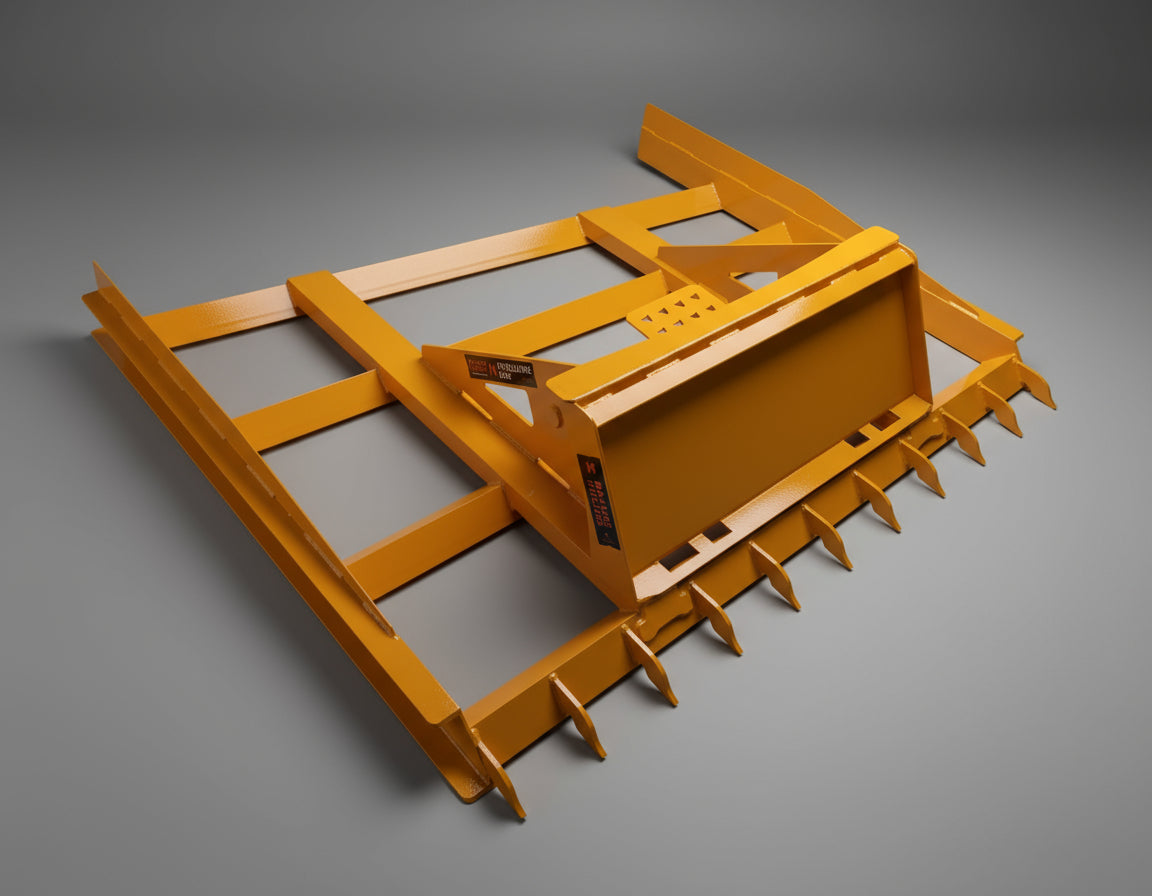

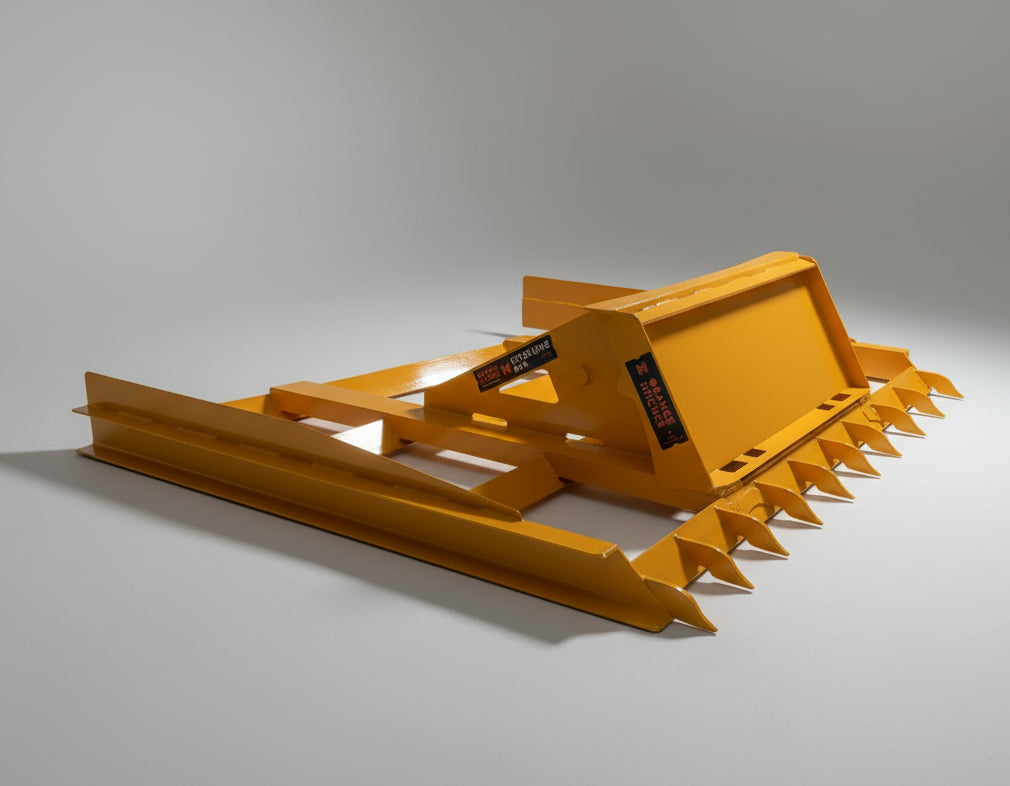

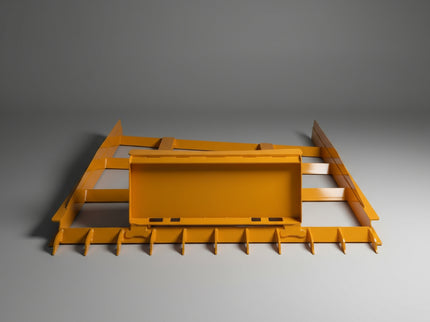

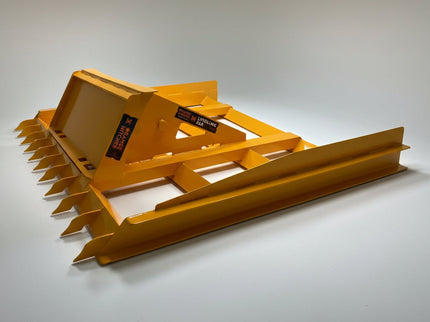

All sizes have the option of Ripper Claws made from ARS450 Abrasion Resistant Steel, when crowding back you can use claws to help rough up and break surface.

Choose width and depth to suit you application.

FEATURES

Front two cross bars angled left to right
Heavy duty 8mm thick coupler plate
Four right angel cross bars
Step for entering and exiting machine (not for Mini Skid options)
Finished in two pack polyurethane

OPTIONS

Eight sizes to choose from
Three colour options

See chart below for specifications

Model	Width	Depth	Weight	Connection Type	Cross Bar Material
SSL160	1.6m	1.4m	110kg	Mini Skid / Skid Steer Coupler	75x75x8 Angle
SSL180	1.8m	1.4m	127kg	Mini Skid / Skid Steer Coupler	75x75x8 Angle
SSL200	2m	1.6m	140kg	Mini Skid / Skid Steer Coupler	75x75x8 Angle
SSL220	2.2m	1.6m	277kg	Mini Skid / Skid Steer Coupler	100x100x10 Angle
SSL240	2.4m	1.8m	289kg	Skid Steer Coupler	100x100x10 Angle
SSL260	2.6m	1.8m	296kg	Skid Steer Coupler	100x100x10 Angle
SSL280	2.8m	1.8m	316kg	Skid Steer Coupler	100x100x10 Angle
SSL300	3m	1.8m	329kg	Skid Steer Coupler	100x100x10 Angle

SHIPPING

FREE delivery Tasman region
The rest of NZ calculated at check out

STOCKING LEVELS - 10 Day Promise

If not in stock, we promise to have it ready to ship in 10 Working Days! If you need it urgently, the let us know we can usually shuffle things around to meet your deadline.
