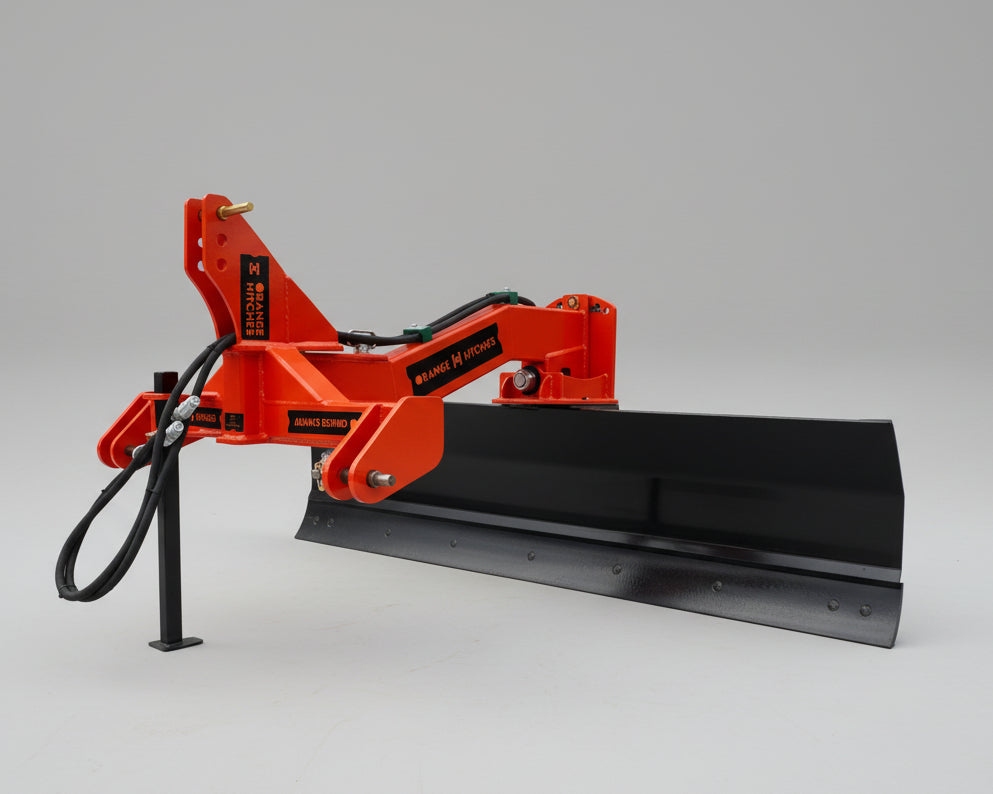

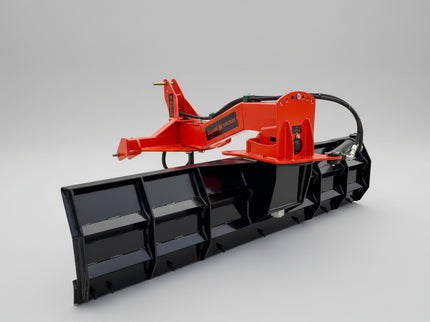

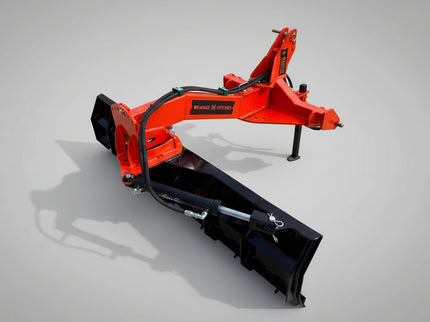

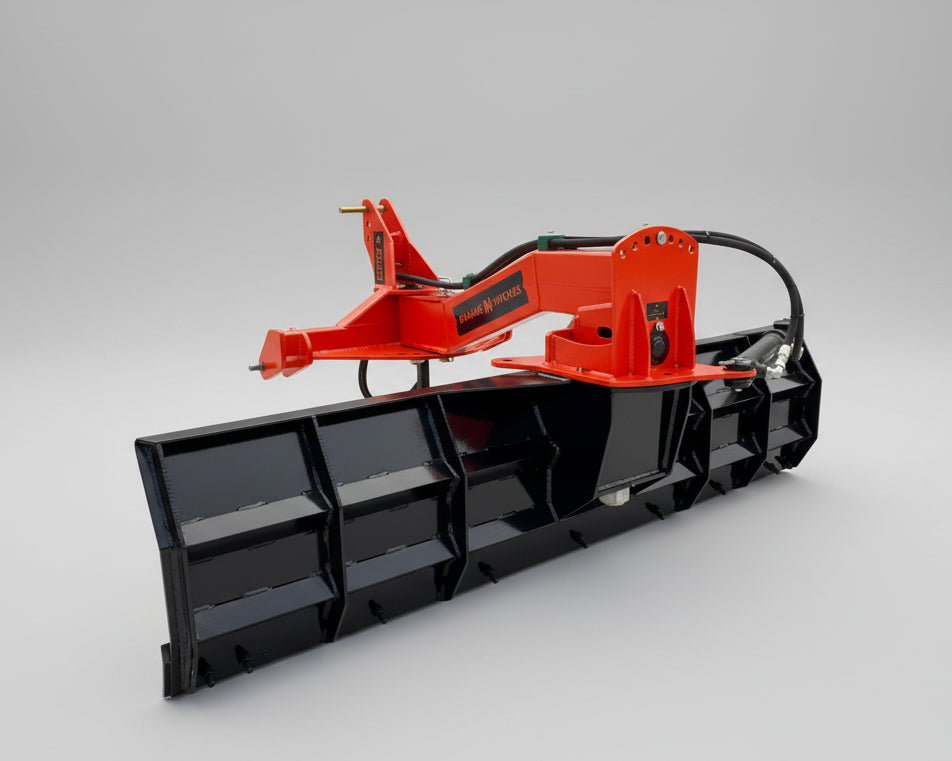

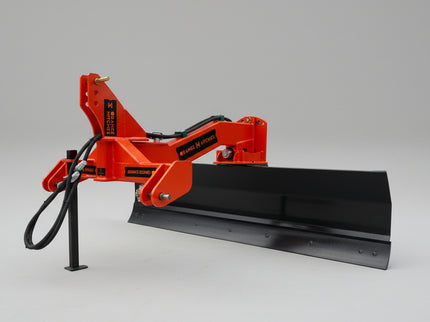

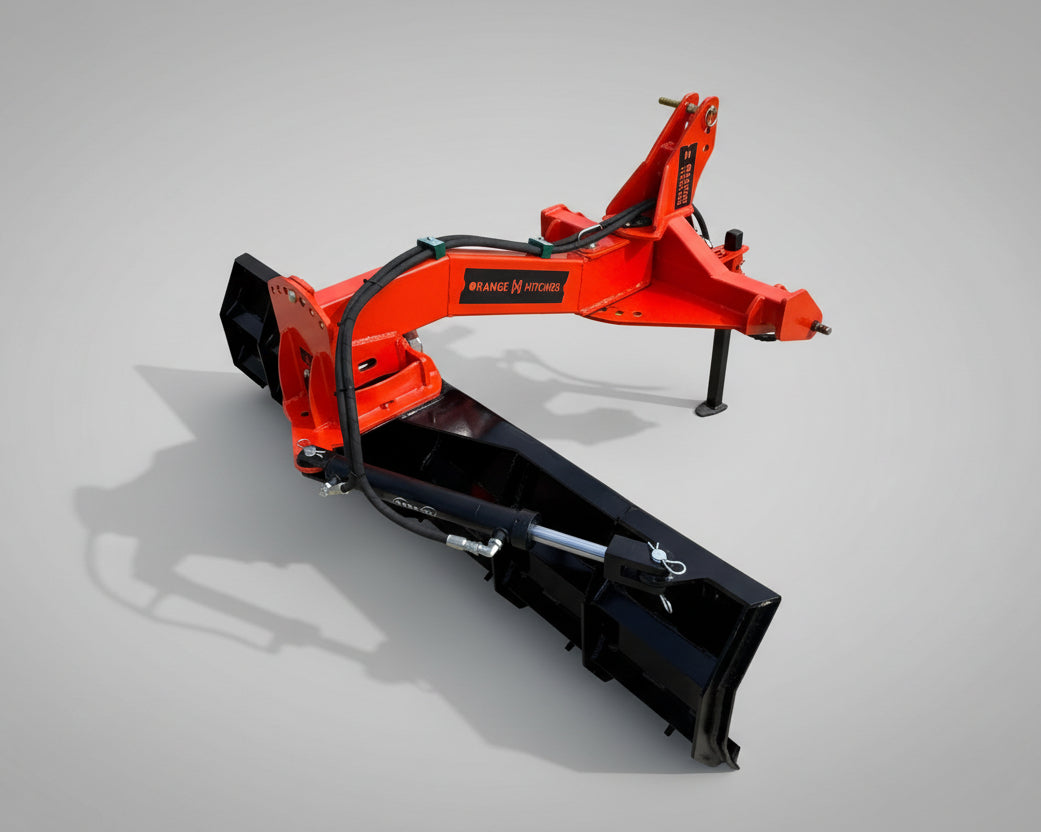

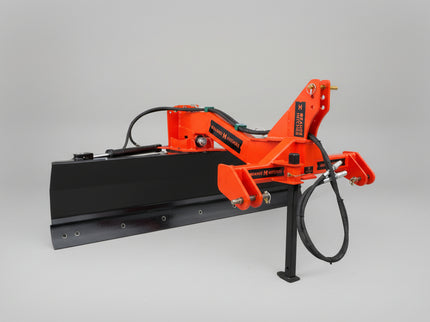

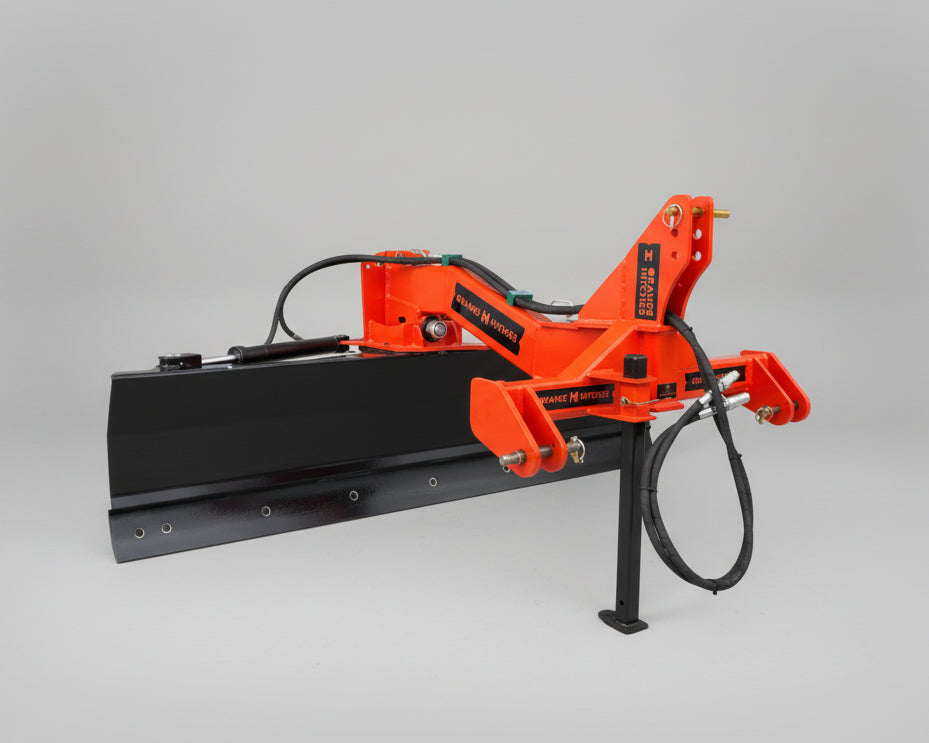

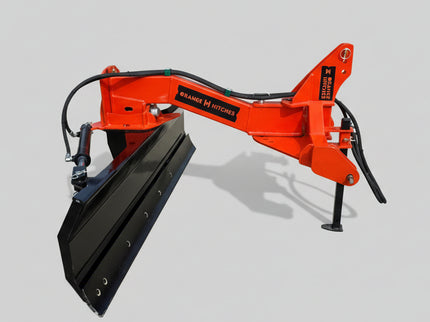

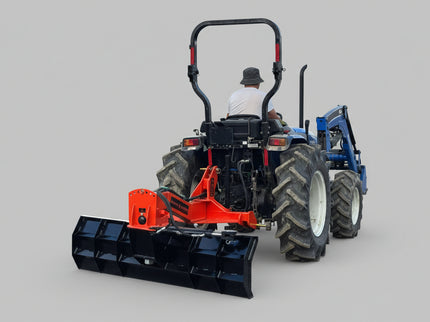

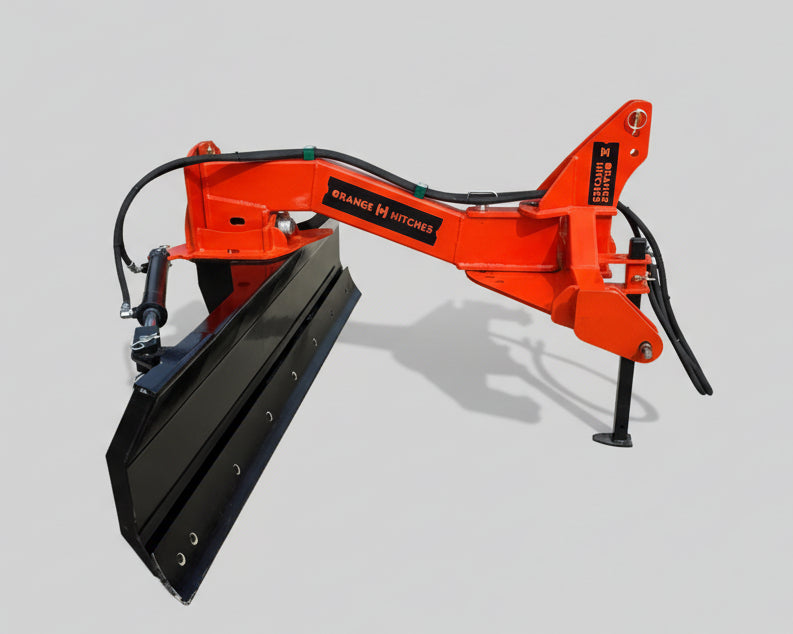

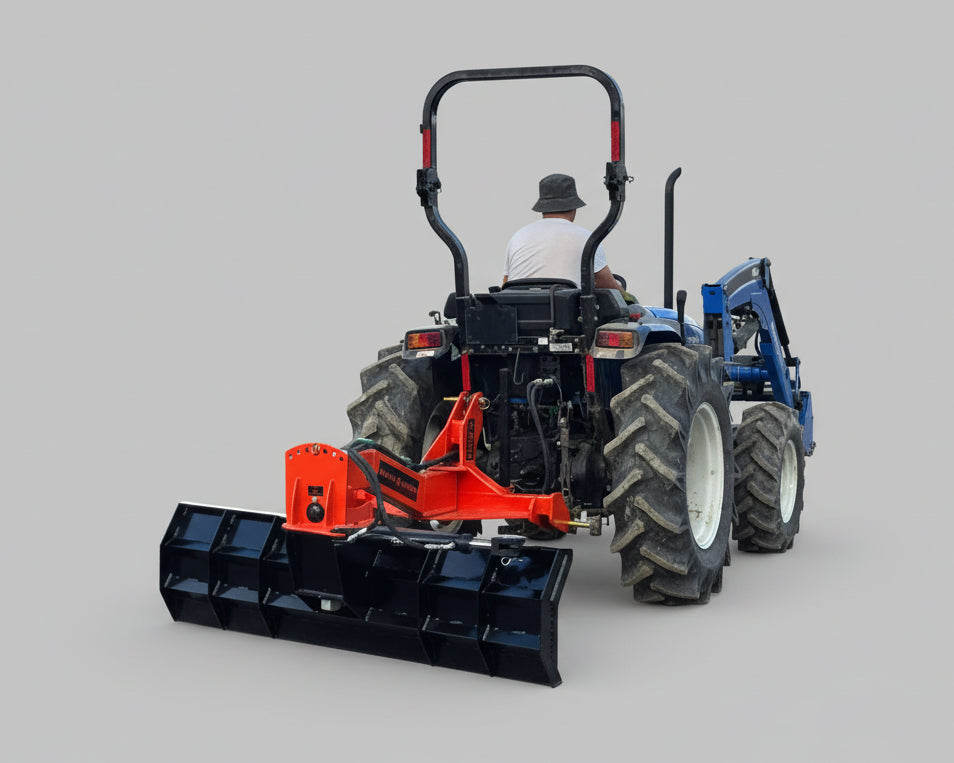

BACK BLADE 50-100hp Tractors
The ever popular Back Blade for grading and shaping driveways built to the next level by Orange Hitches.
BLADE ADJUSTMENTS
-

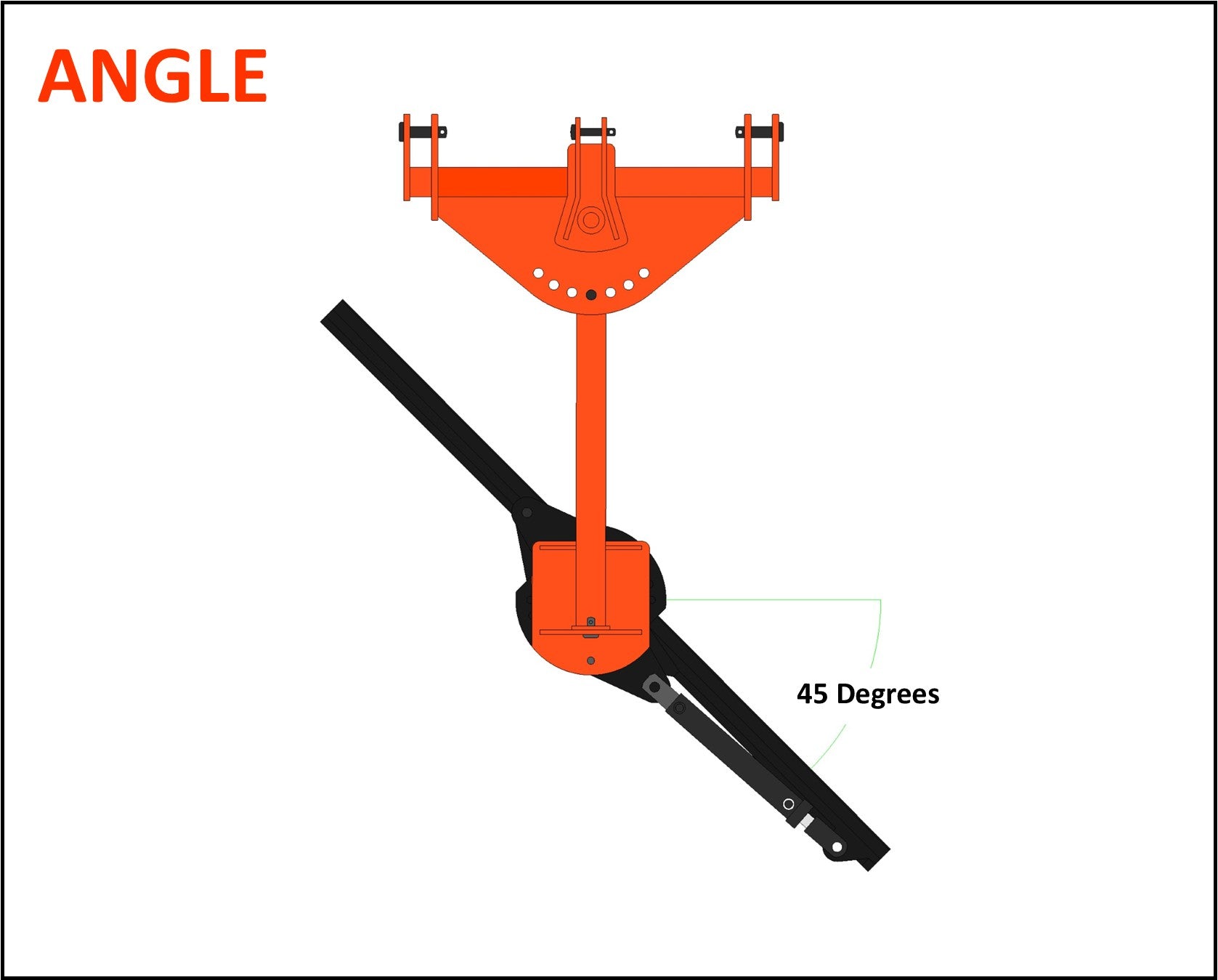

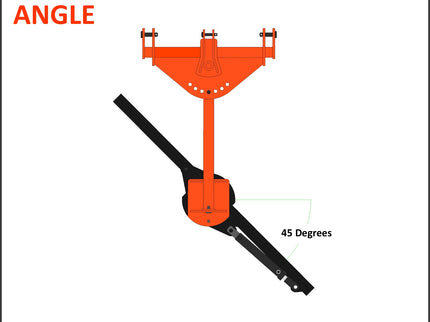

ANGLE: Blade angle rotates up to 45 degrees in each direction to sweep material to one side. Option of hydraulic control.
-

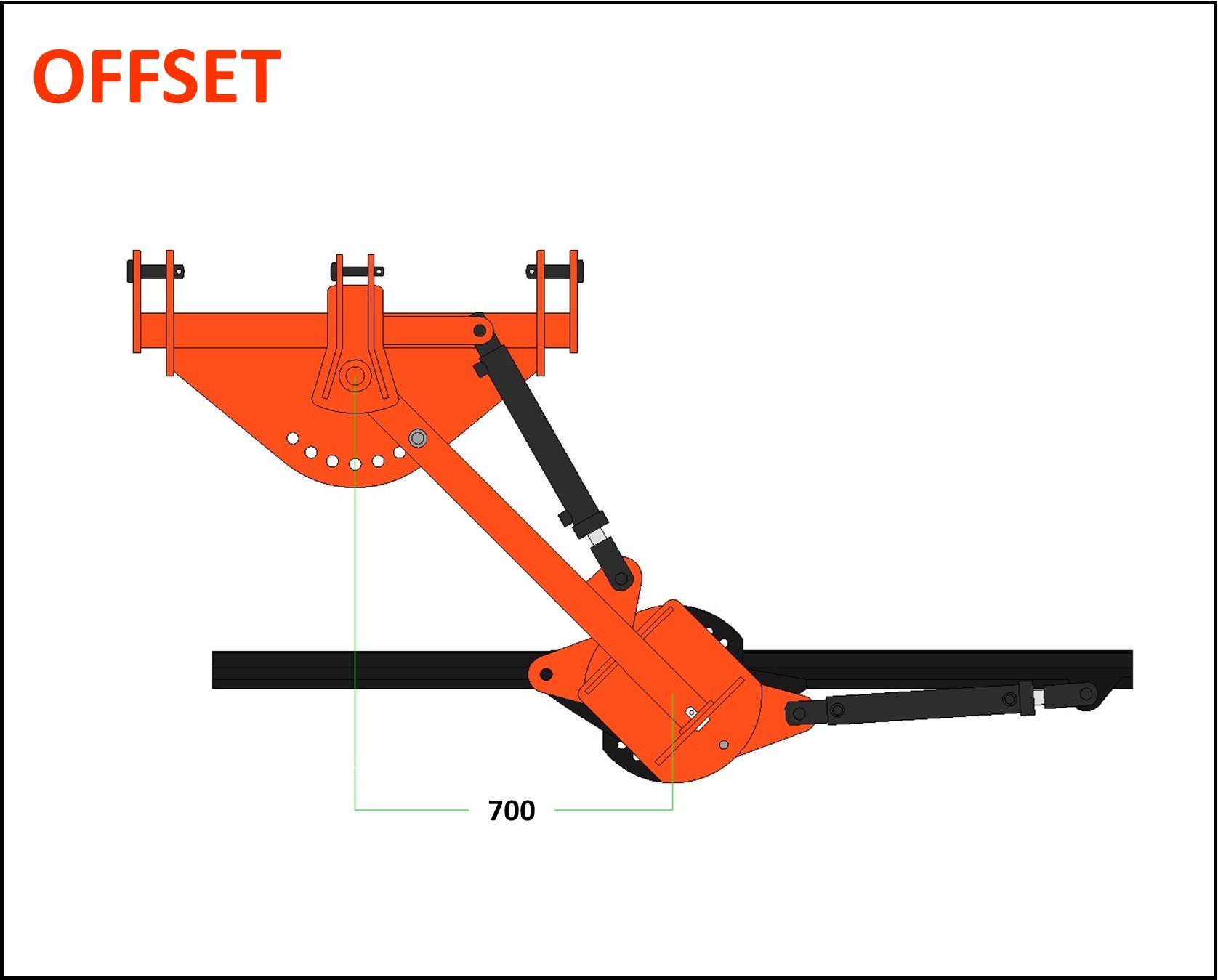

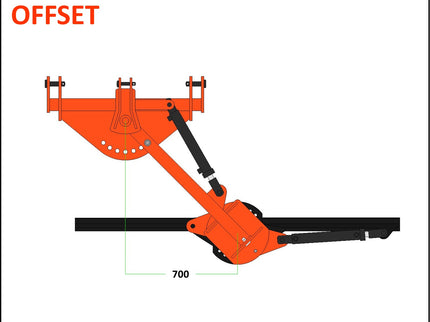

OFFSET: Up to 700mm offset movement out each side of tractor, to reach further to one side. Option of hydraulic control.
-

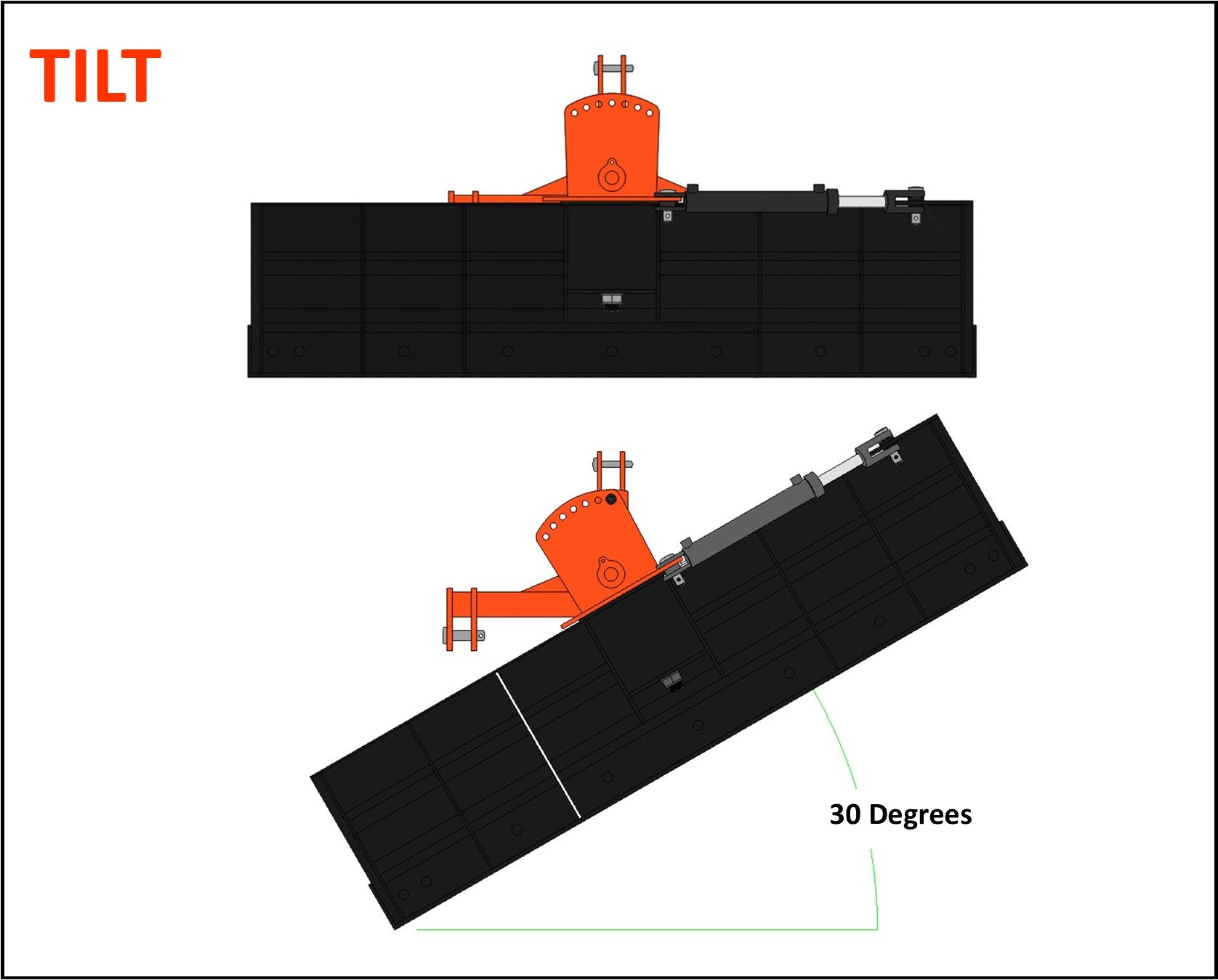

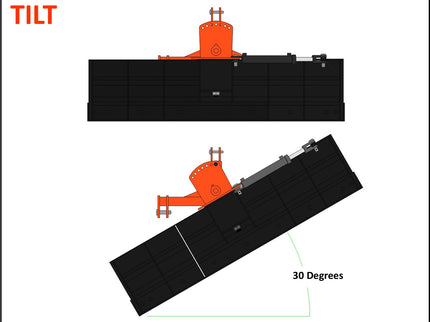

TILT: Up to 30 degrees of tilt in each direction, used to get shape or put crown into the centre of the driveway. Option of hydraulic control.
-
REVERSIBLE: Mould Board (blade) can be rotated 180 degrees so blade can be pushed or pulled
SPECIFICATIONS & OPTIONS
+ Multifit Cat 1 & 2
+ Blade width options 2.1m (7ft) or 2.4m (8ft)
+ Grader Blade; 16mm thick High Carbon steel, heat treated, reversible for extra life
+ Angle, Offset, & Tilt adjustments are manual, with the option of hydraulic controls.

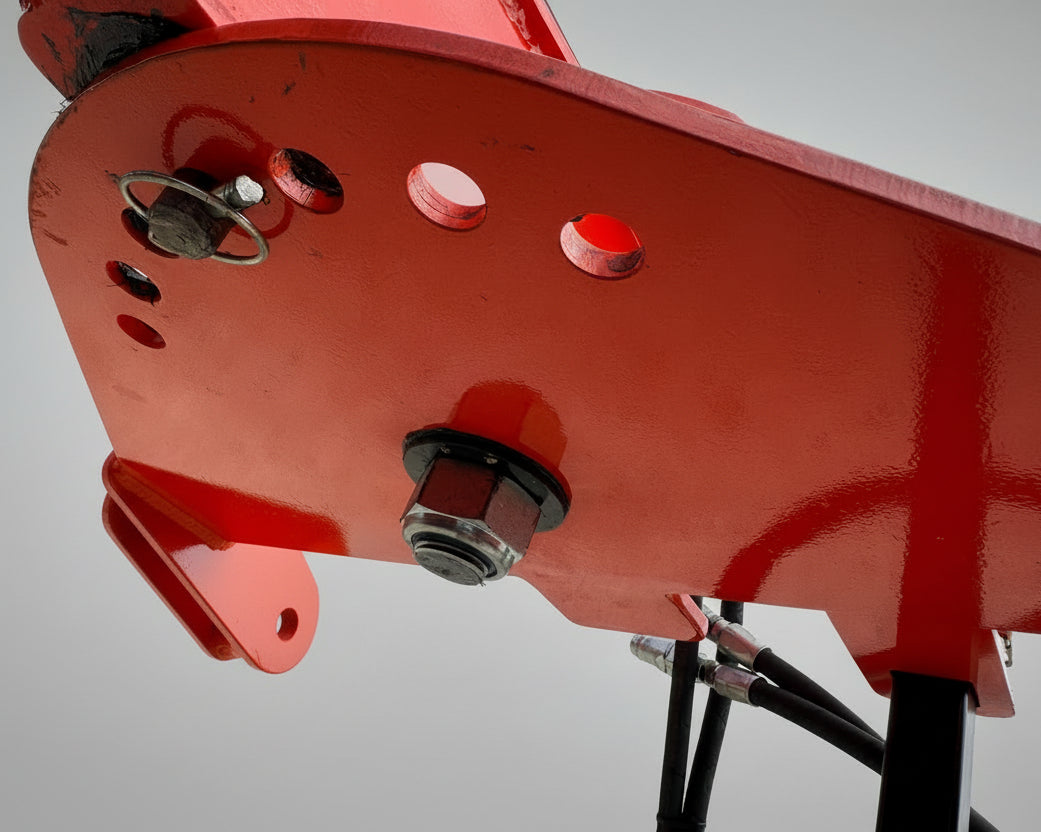

+ All swivel points greaseable
+ Foot stand for storage and easy hook up and unload
+ Painted in two pack polyurethane paint system, including etch primer
+ In standard configuration (no hydraulics) weighs 375kg
+ High tensile 40mm & 50mm swivel pins
SHIPPING
- FREE delivery Tasman region
- The rest of NZ calculated at check out
BUILT TO ORDER - 20 Day Promise
This is not a stock item, we build to order, we promise to have it ready to ship in 20 Working Days! If you need it urgently, the let us know we can usually shuffle things around to meet your deadline.
