HYDRAULIC WINCHES - Tractor 3 Point Linkage

$12,475.00

HYDRAULIC WINCH FOR TRACTOR 3PTL Couple your Tractor 3PTL (Three Point Linkage) into this Hydraulic Winch attachment and you are... Read more Read more

Description

HYDRAULIC WINCH FOR TRACTOR 3PTL

Couple your Tractor 3PTL (Three Point Linkage) into this Hydraulic Winch attachment and you are ready to snig logs, vehicle/machinery recovery or what ever else needs winching!

FEATURES

Heavy duty frame, CNC profile cut
Can be anchored up to 450mm into the ground
Large removable safety frame
Legs for storage and easy hook up
Includes hydraulic hoses and QRC's (Quick Release Couplings)
Finished in two pack polyurethane
All winch options have manual free wheel shifter for manually pulling out cable

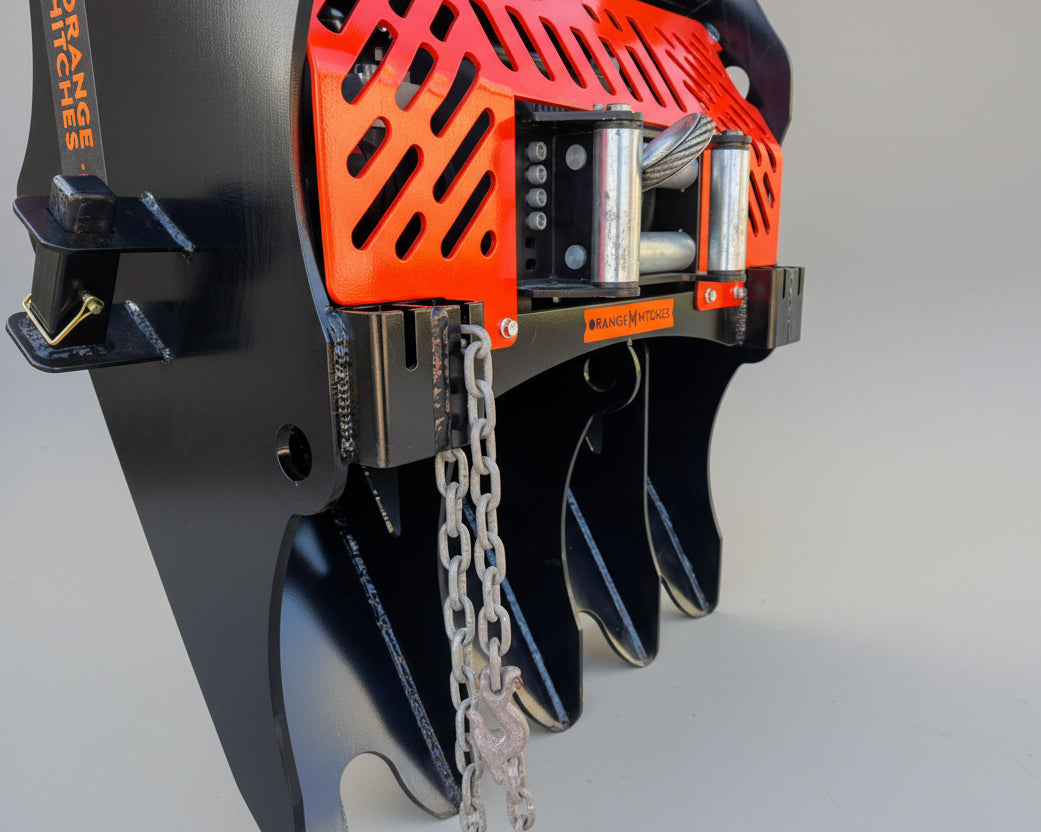

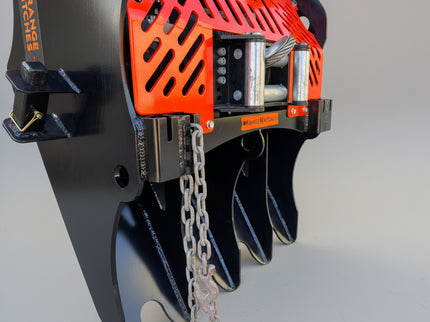

All winches include guide roller and wire rope tensioner
Winch cable installed included with swaged eye at the end

OPTIONS

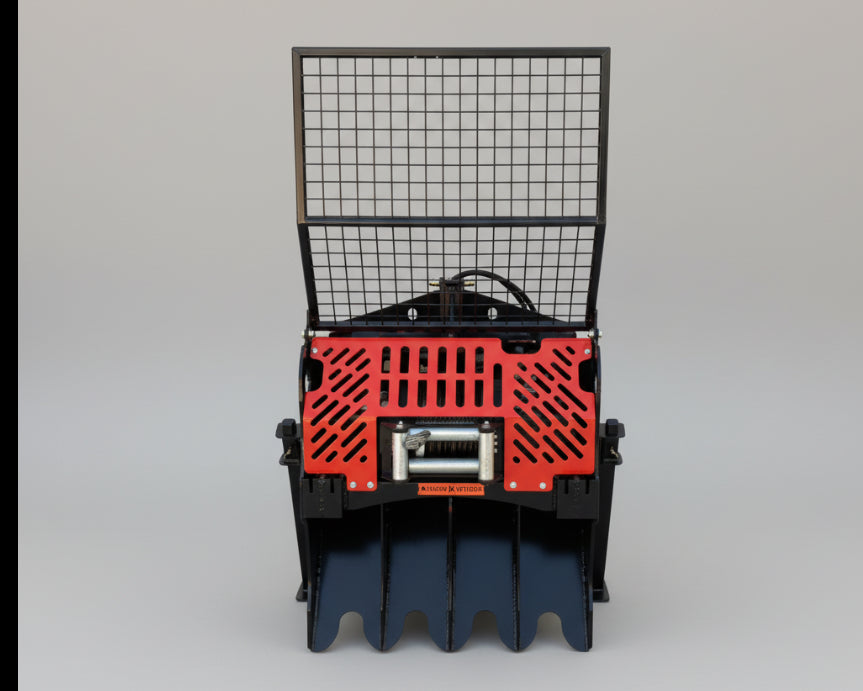

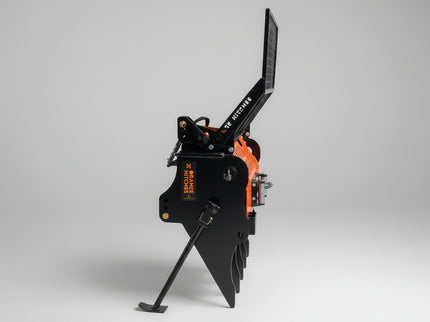

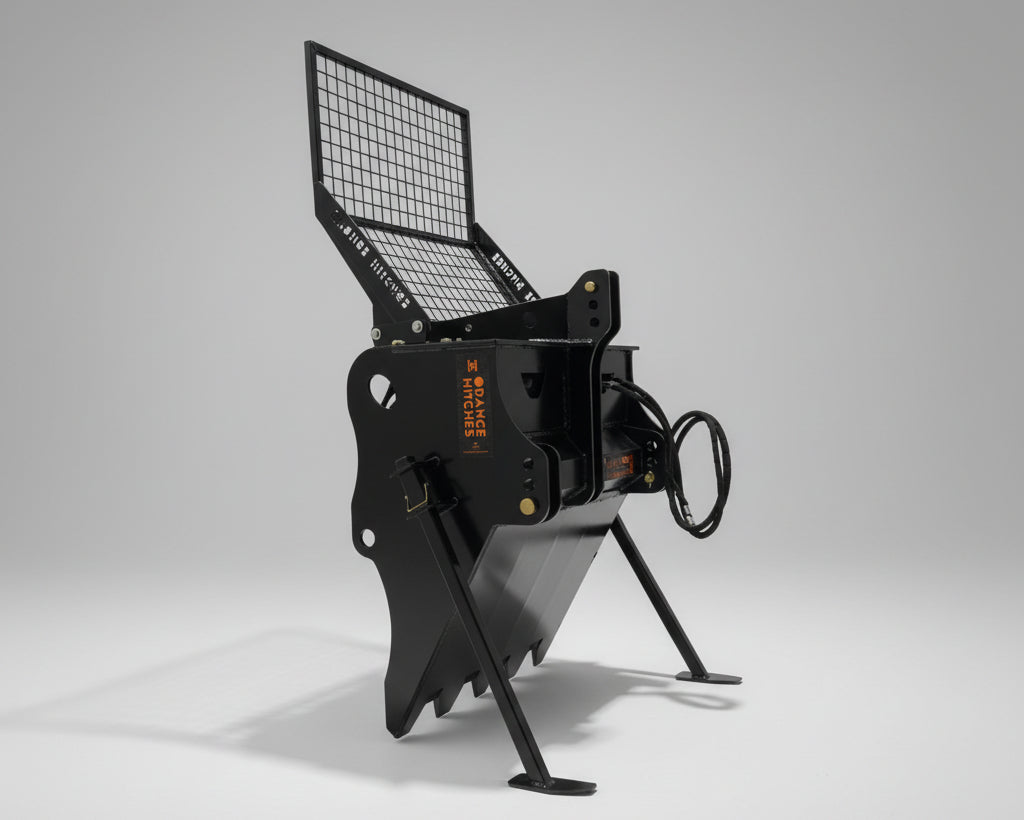

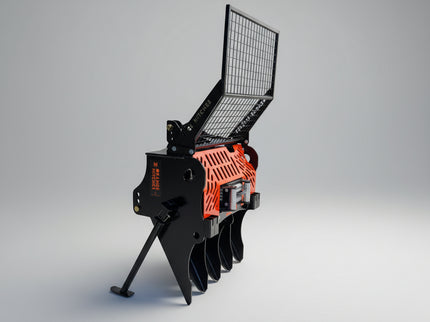

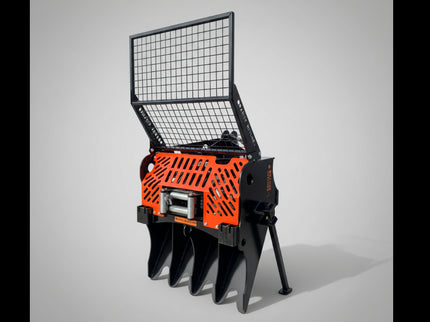

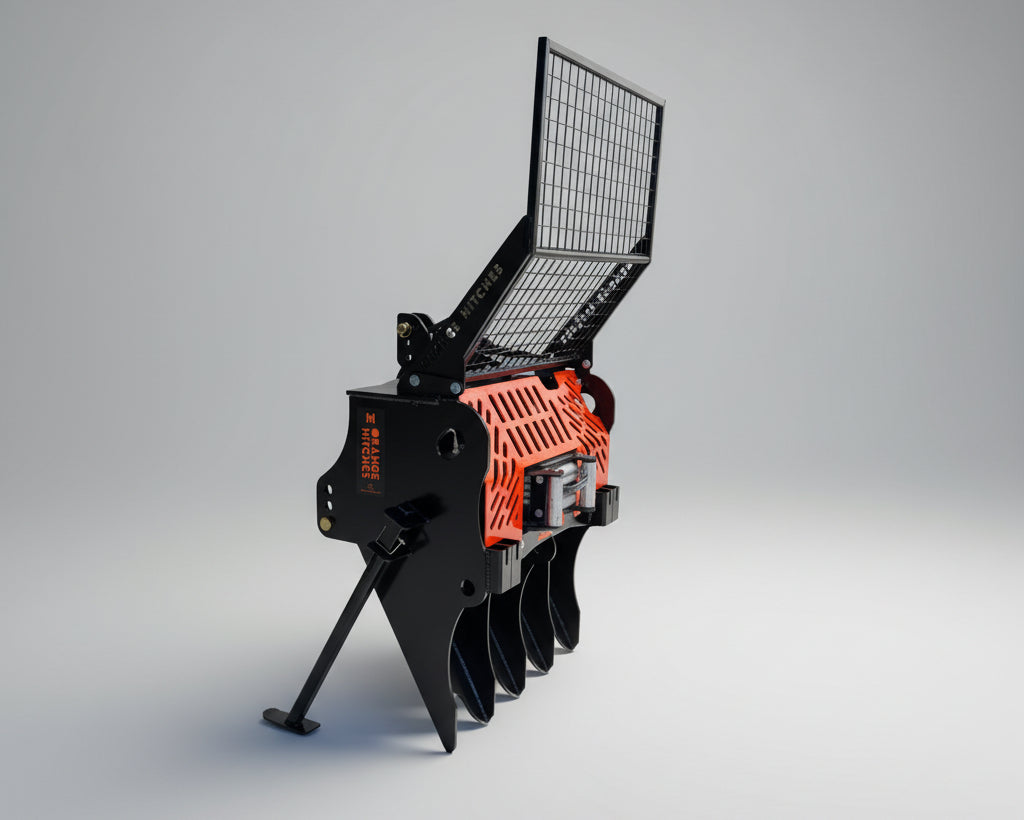

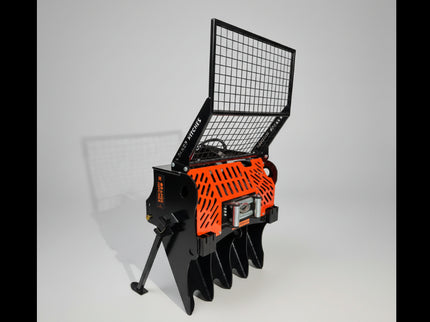

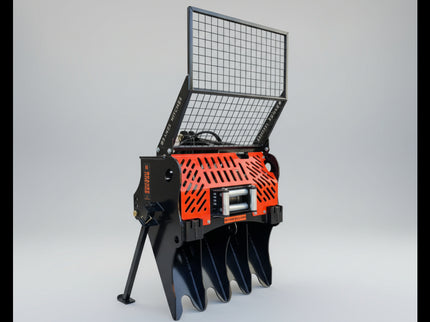

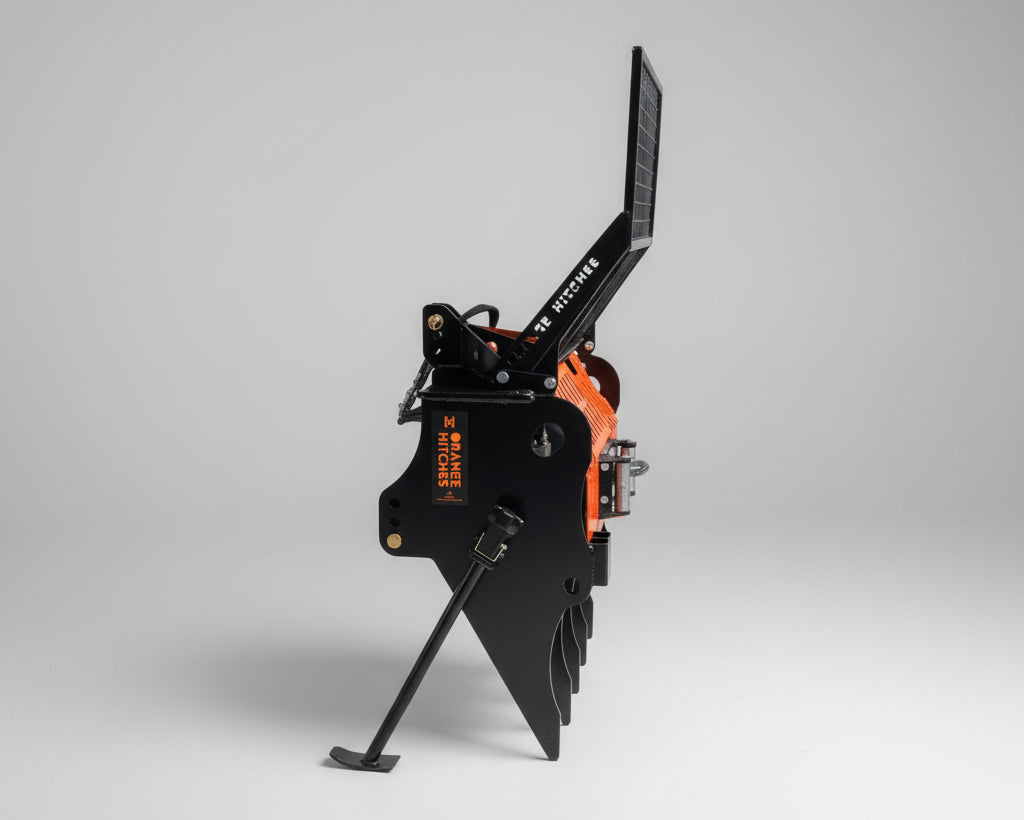

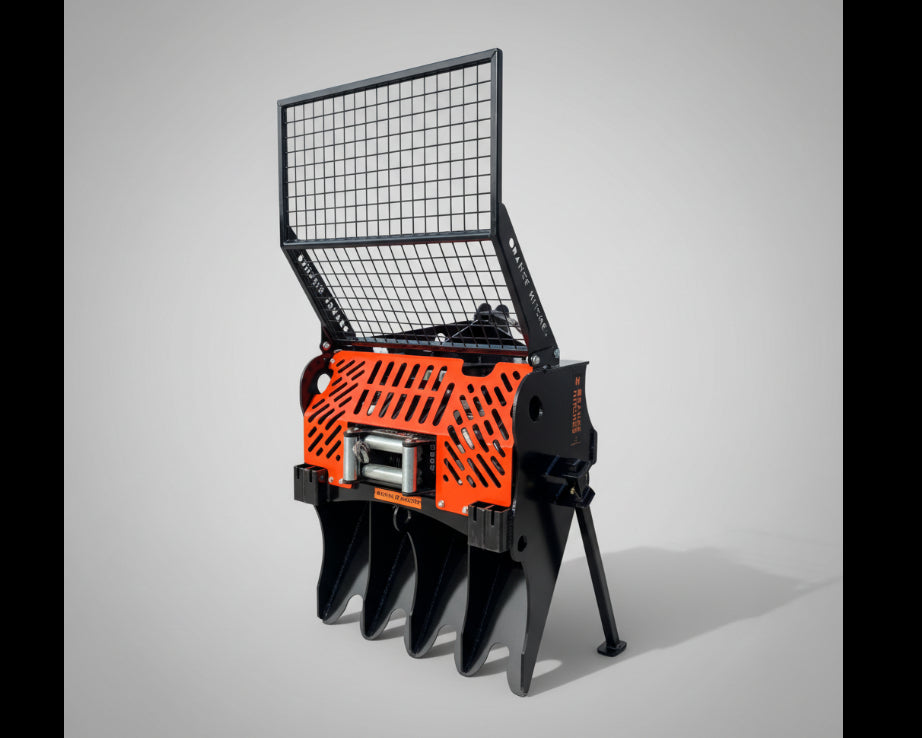

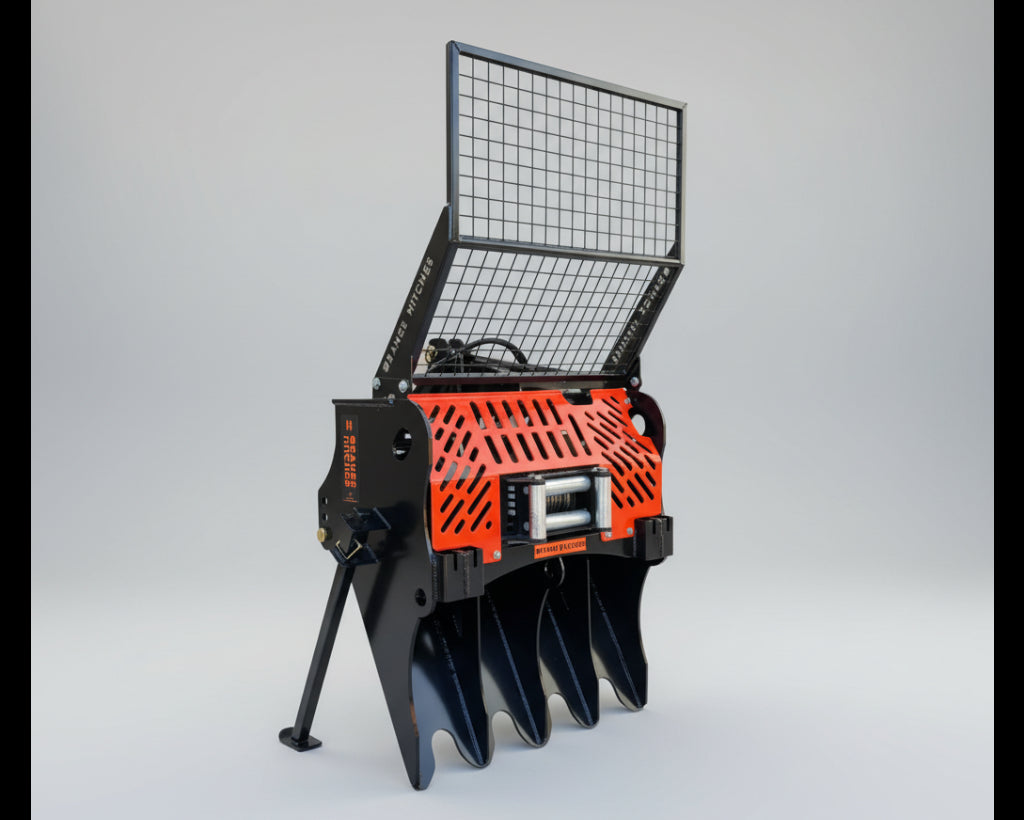

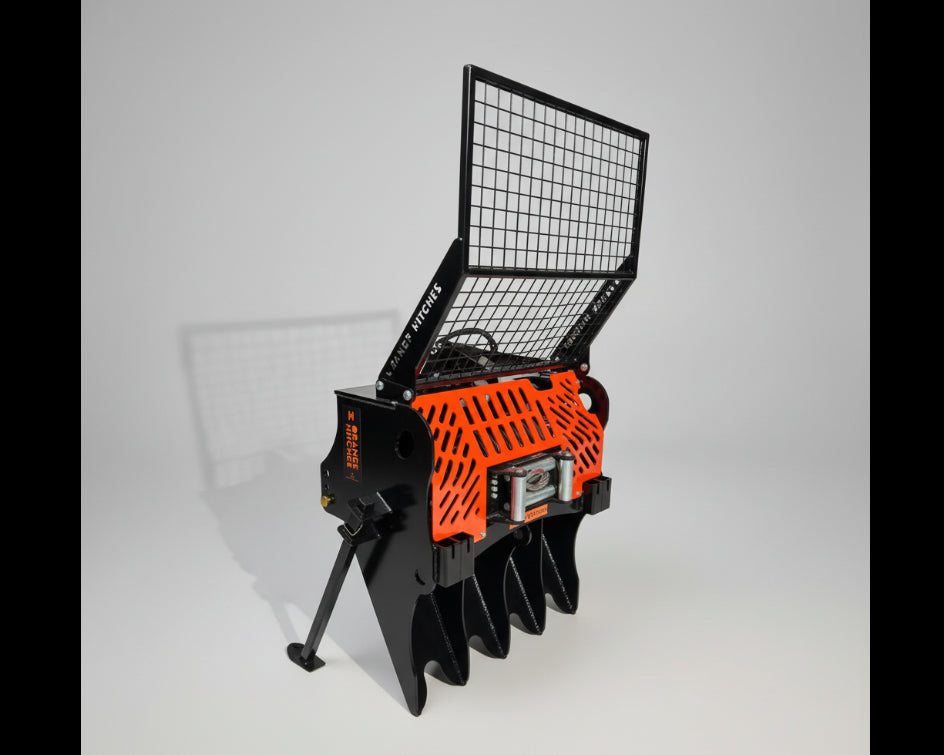

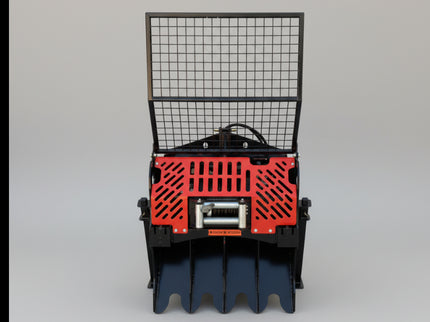

Three sizes winches to choose from, 7.8, 12, or 15tonne (pictures show 7.8 tonne version)
Colour options, Black, Orange, or John Deere Green
Attachment options; Tractor Cat 2 or 3 Three Point Linkage

See chart below for specifications

Model	Winch Cable Dia	Cable Length	Weight	Max Winch Capacity	Connects to...	Max pump flow (L/min)

OHW7800-3PTL	14mm	50m	435kg	7800kg (7.8 tonne)	Tractor 3PTL-Cat2	75 L/min

OHW12000-3PTL	16mm	48m	534kg	12000kg (12 tonne)	Tractor 3PTL-Cat2or3	60 L/min

OHW15000-3PTL	18mm	44m	555kg	15000kg (15 tonne)	Tractor 3PTL-Cat2or3	80 L/min

SHIPPING

FREE delivery Tasman region
The rest of NZ calculated at check out

BUILT TO ORDER - 20 Day Promise

We build this attachment to order; we promise to have it ready to ship in 20 Working Days! If you need it urgently, then let us know, we can usually shuffle things around to meet your deadline.

ORANGE HITCHES NZ LIMITED (Est 2007)

Kiwi made
Factory direct
Optional custom mods & builds
First in customer service

Orange Hitches NZ, ALWAYS BEHIND YOU
