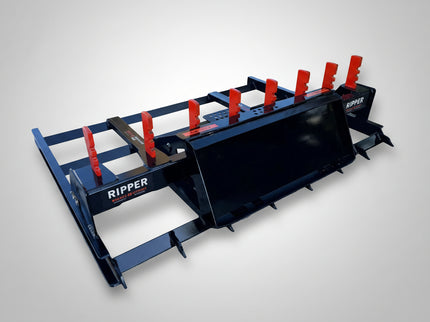

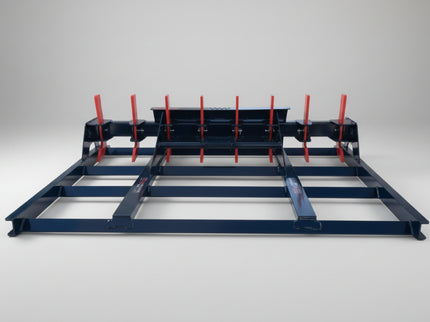

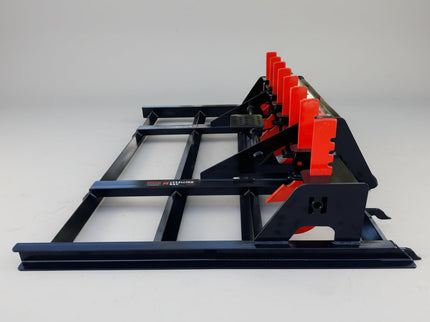

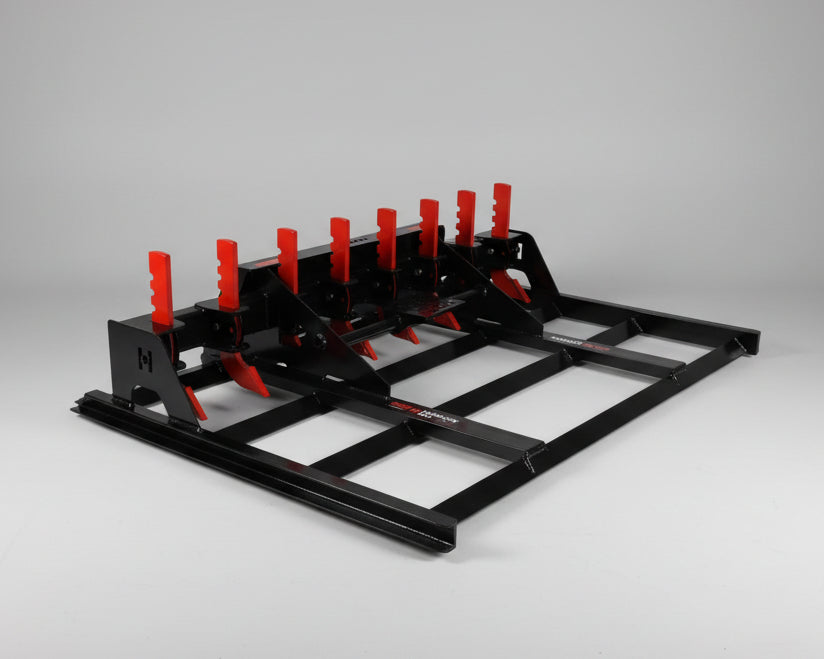

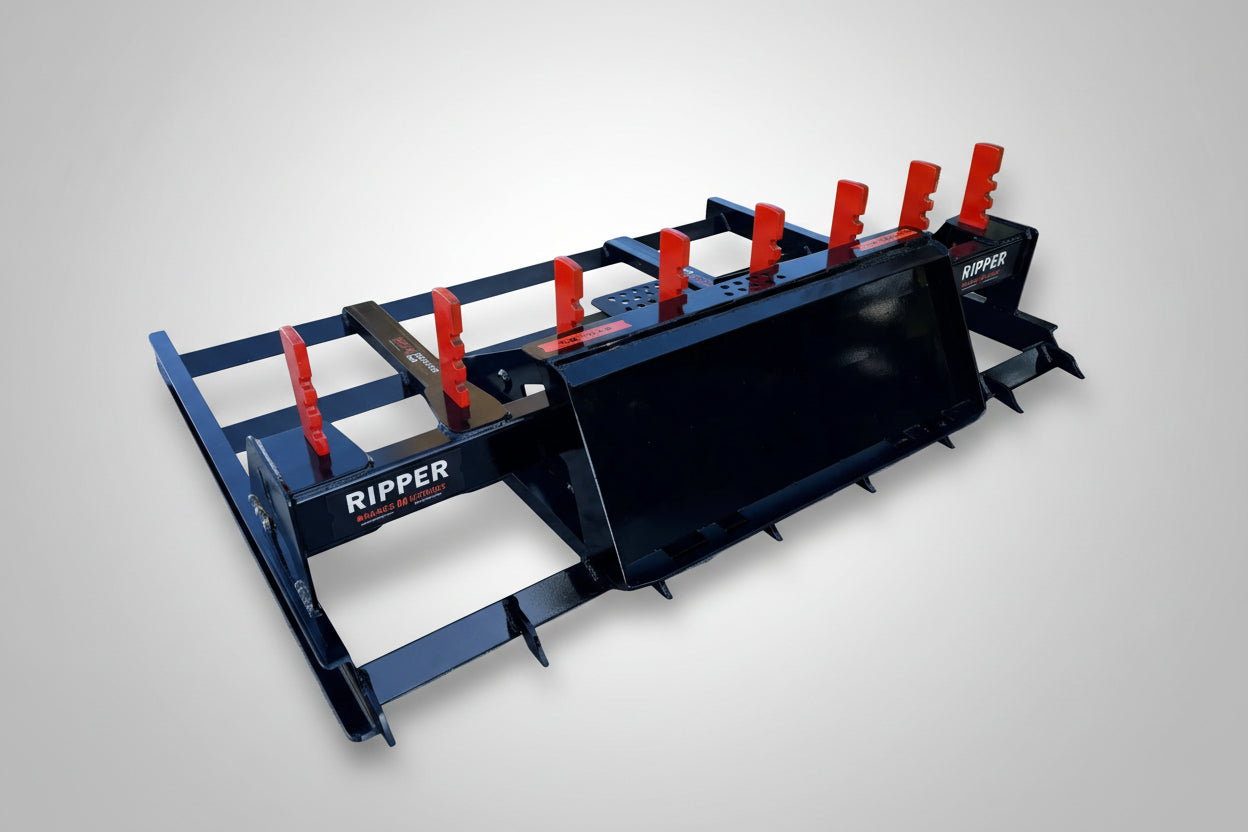

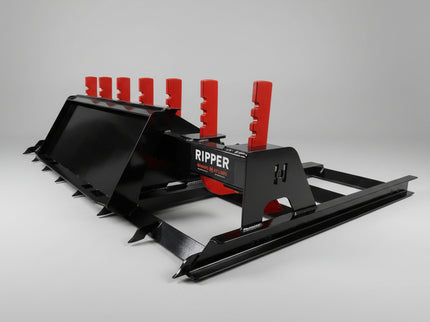

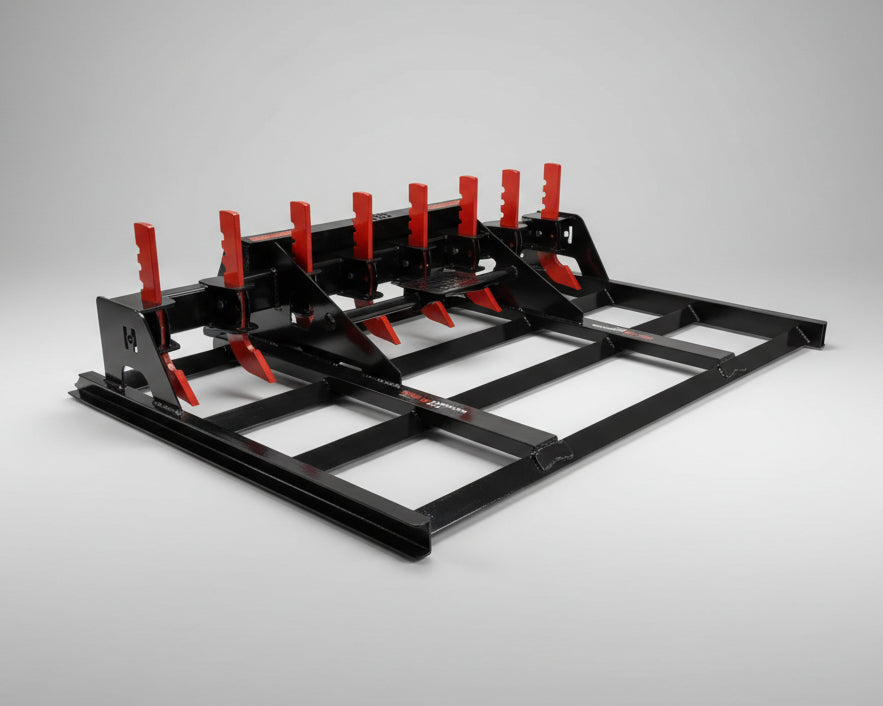

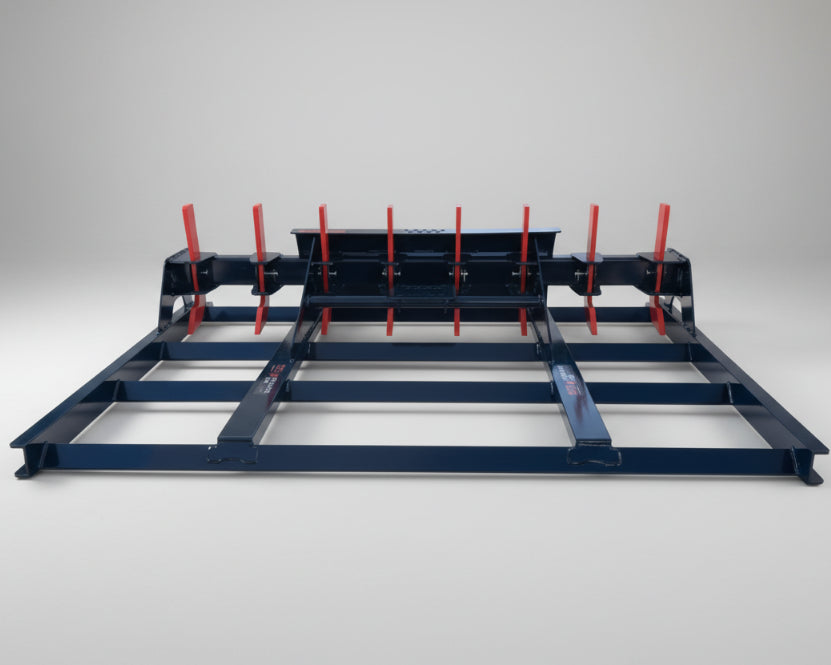

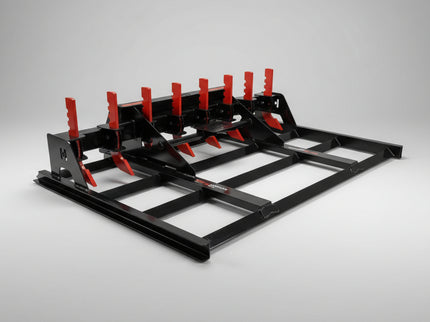

LEVELLING BARS - RIPPER COMBO for SKID STEER
The ultimate Skid Steer attachment for landscapers! Rip and Level in one pass, or lower rippers for a deeper rip, retract rippers and level off! Do that job better, faster!

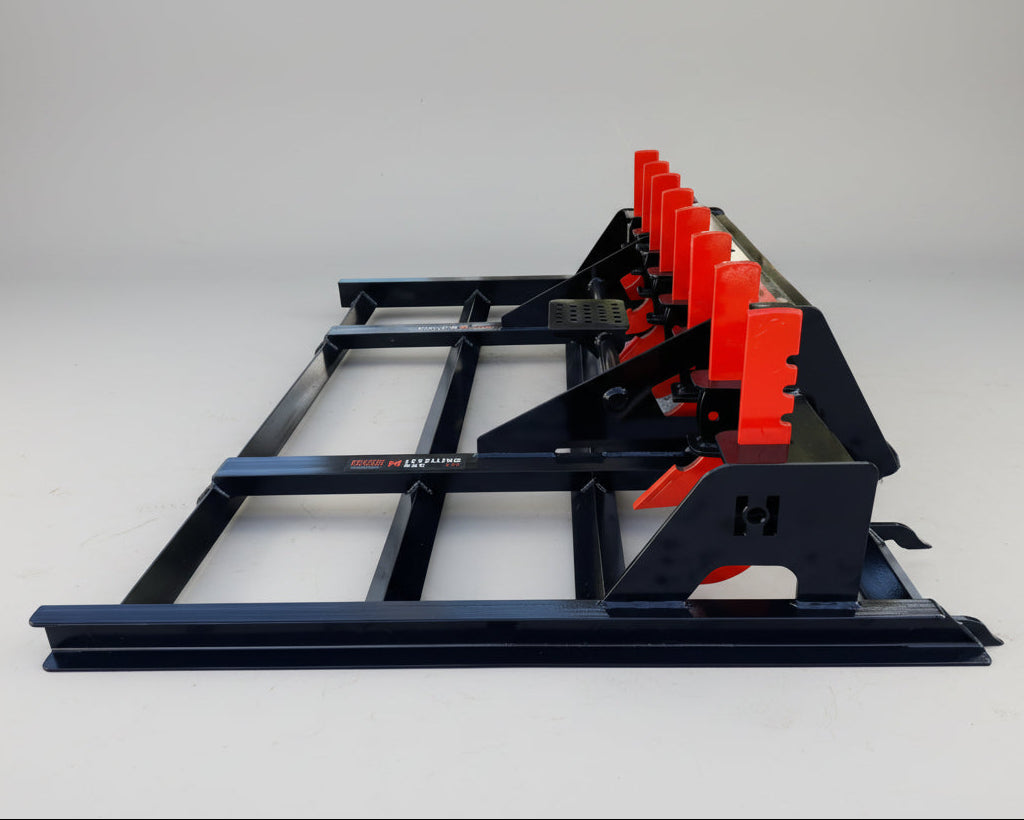

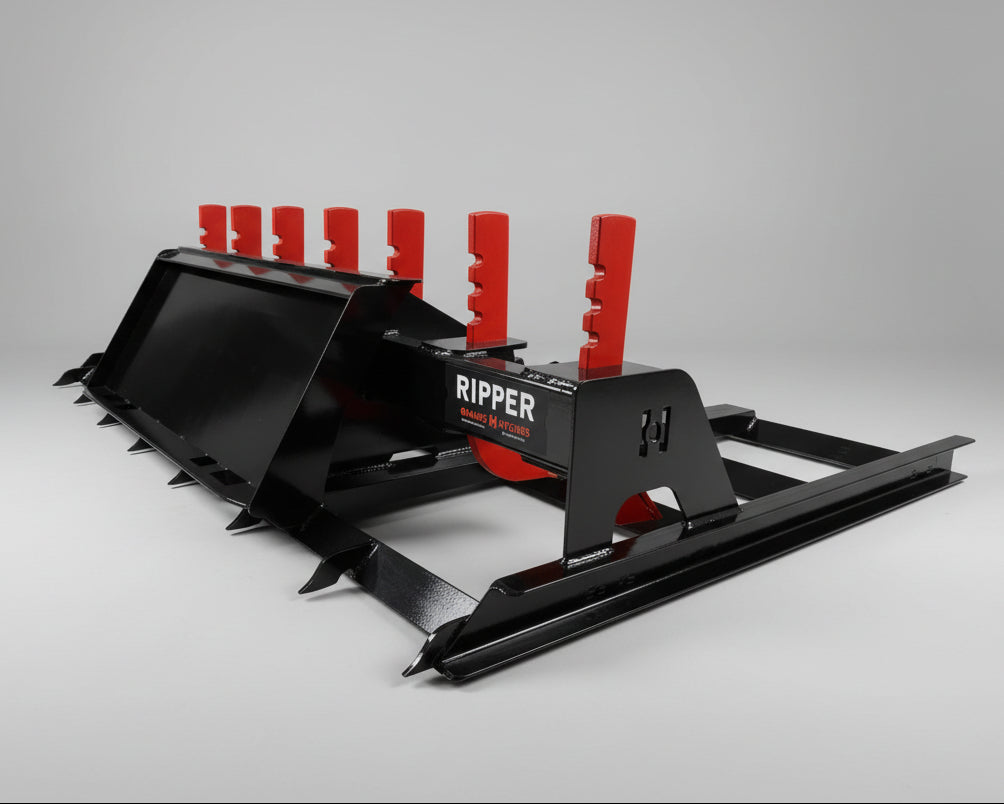

Rippers have three depth options, shanks can be reversed so can be pushed or pulled. Also, comes standard with claws on leading edge, roll back to scuff the surface without having to lower Ripper Shanks. Step for entering and exiting machine.
Choose width and depth to suit your type of work and machine size.
FEATURES
- Heavy duty 8mm thick coupler plate

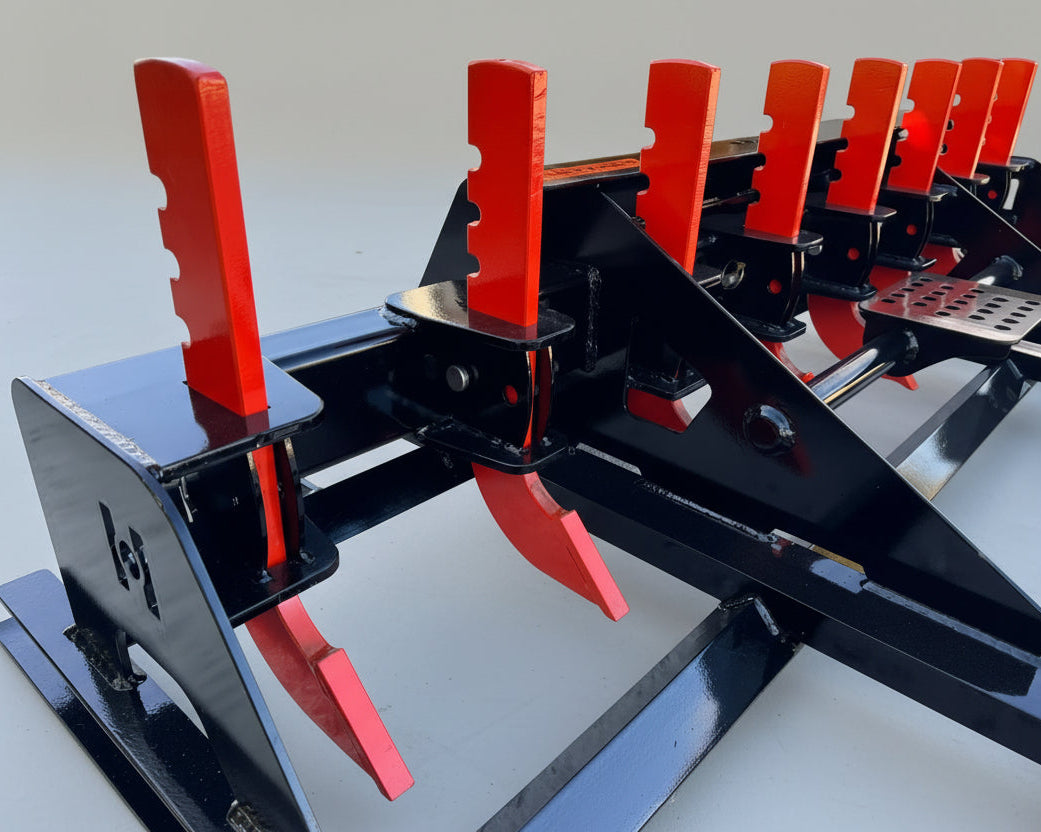

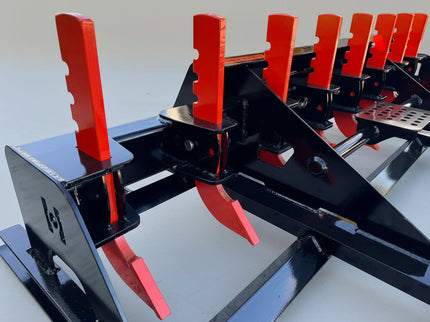

- Three Ripper Shank cut depth options; 50mm, 100mm & 150mm
- Approx 250mm space between Ripper Shanks on all models
- Also 'park position' for Ripper Shanks so they clear the surface
- Step for entering and exiting machine
- Finished in two pack polyurethane
OPTIONS
- Six widths to choose from
- Three colour options
See chart below for specifications
| MODEL |
WIDTH |
DEPTH |
No of
RIPPERS
|
WEIGHT |
No of
CROSS BARS
|
CROSS BAR
MATERIAL
|
| SSL175-R6 |
1.75m |
1.6m |
6 |
288kg |
Four |
75x75x8 Angle |
| SSL200-R7 |
2.00m |
1.6m |
7 |
322kg |
Four |
75x75x8 Angle |
| SSL225-R8 |
2.25m |
1.6m |
8 |
370kg |
Four |
100x100x10 Angle |
| SSL250-R9 |
2.50m |
1.8m |
9 |
409kg |
Four |
100x100x10 Angle |
| SSL275-R10 |
2.75m |
1.8m |
10 |
448kg |
Four |
100x100x10 Angle |
| SSL300-R11 |
3.00m |
1.8m |
11 |
487kg |
Four |
100x100x10 Angle |
SHIPPING
- FREE delivery Tasman region
- The rest of NZ calculated at check out
BUILT TO ORDER - 15 Day Promise
This is not a stock item, we build to order, we promise to have it ready to ship in 15 Working Days! If you need it urgently, the let us know we can usually shuffle things around to meet your deadline.
ORANGE HITCHES NZ LIMITED (Est 2007)
- Kiwi made
- Factory direct
- Optional custom mods & builds
- First in customer service
Orange Hitches NZ, ALWAYS BEHIND YOU
