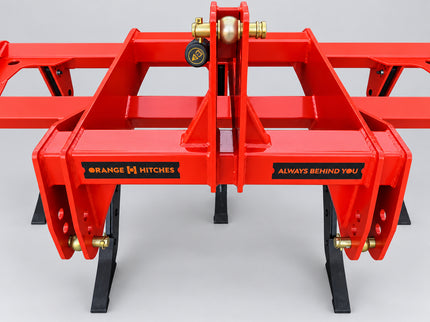

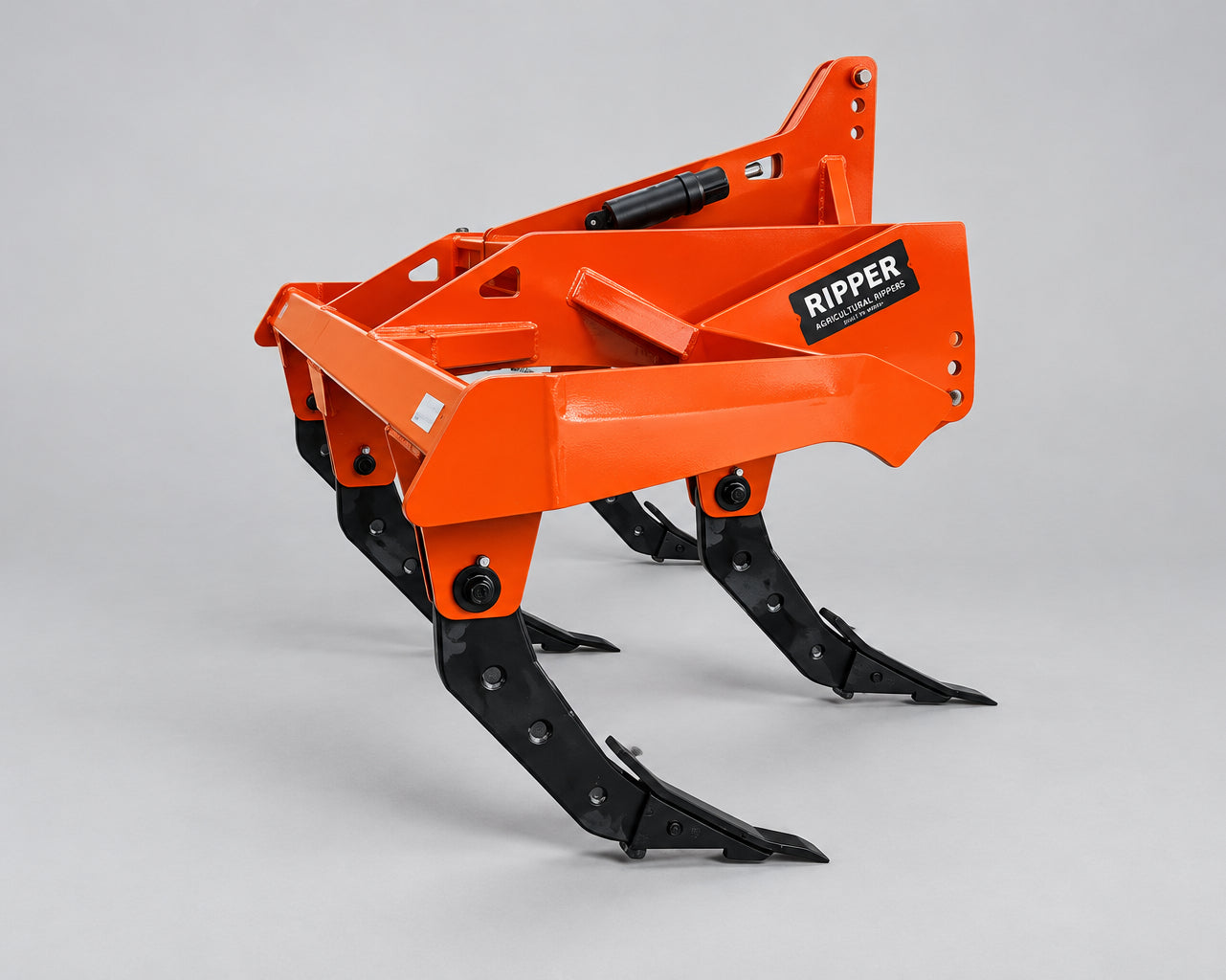

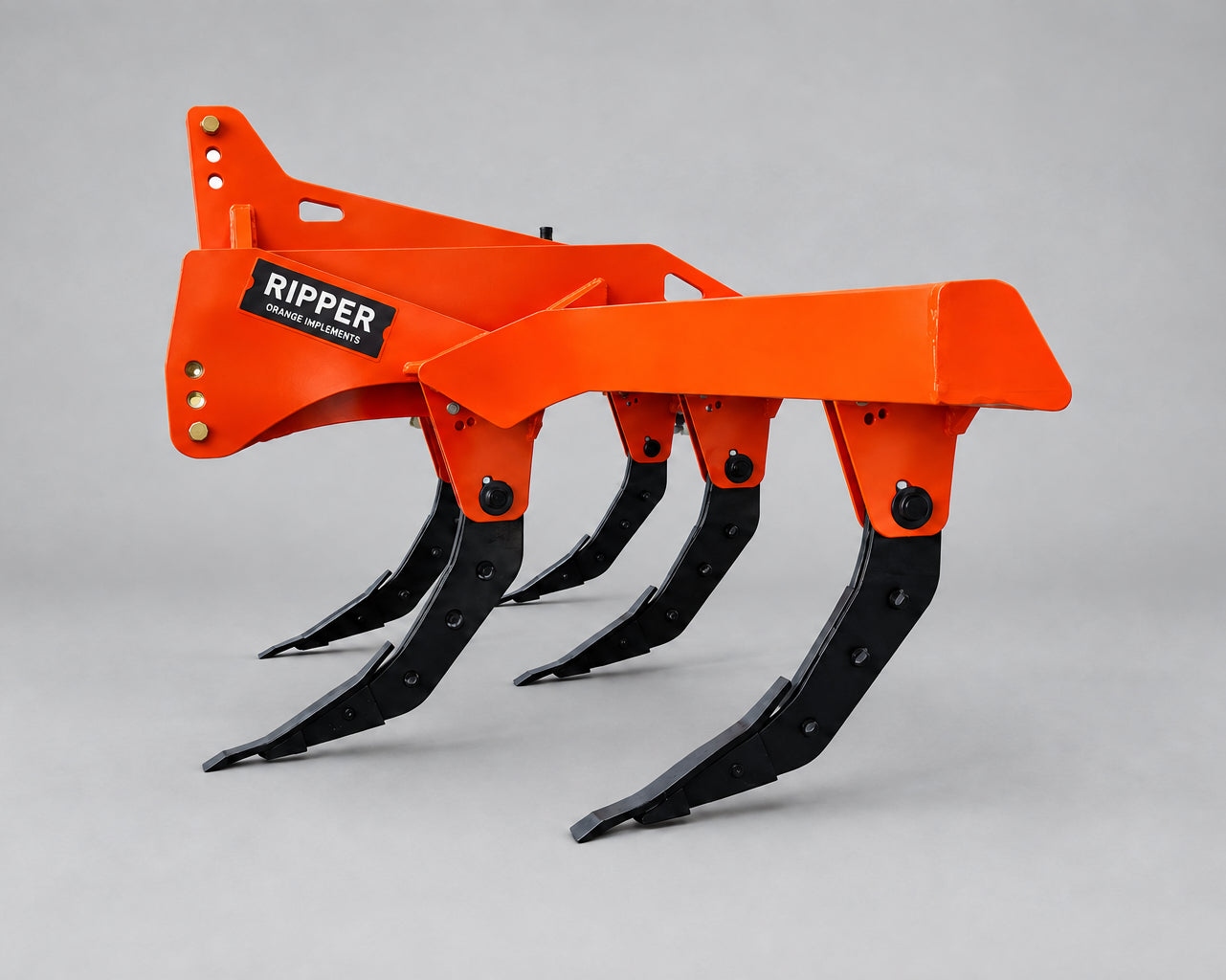

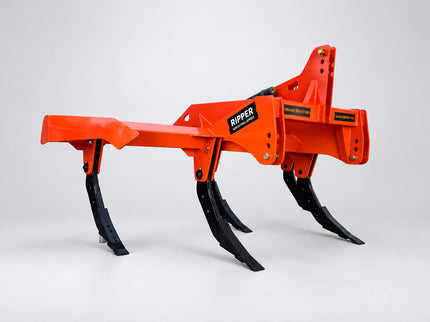

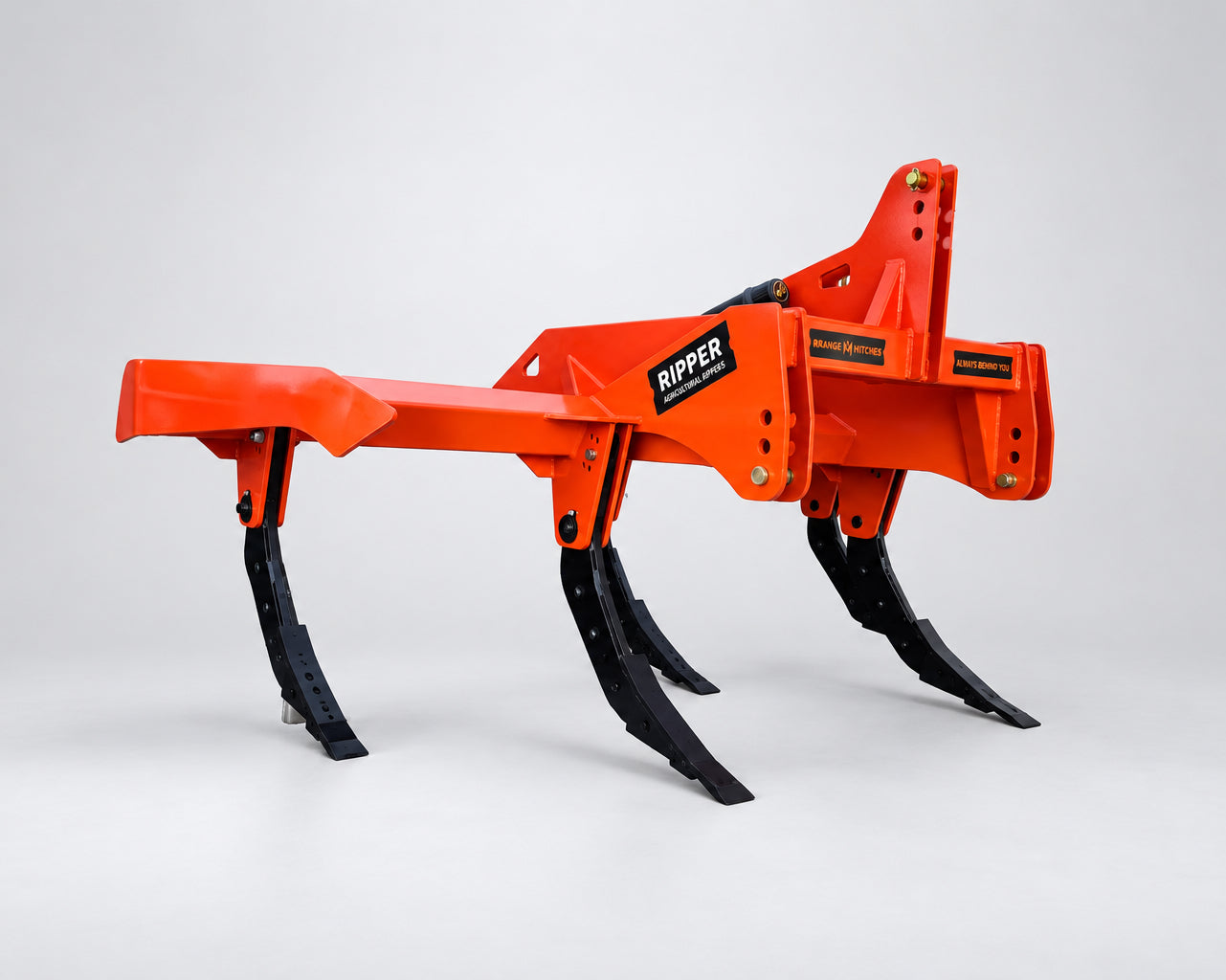

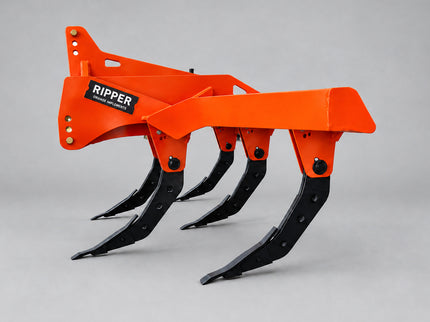

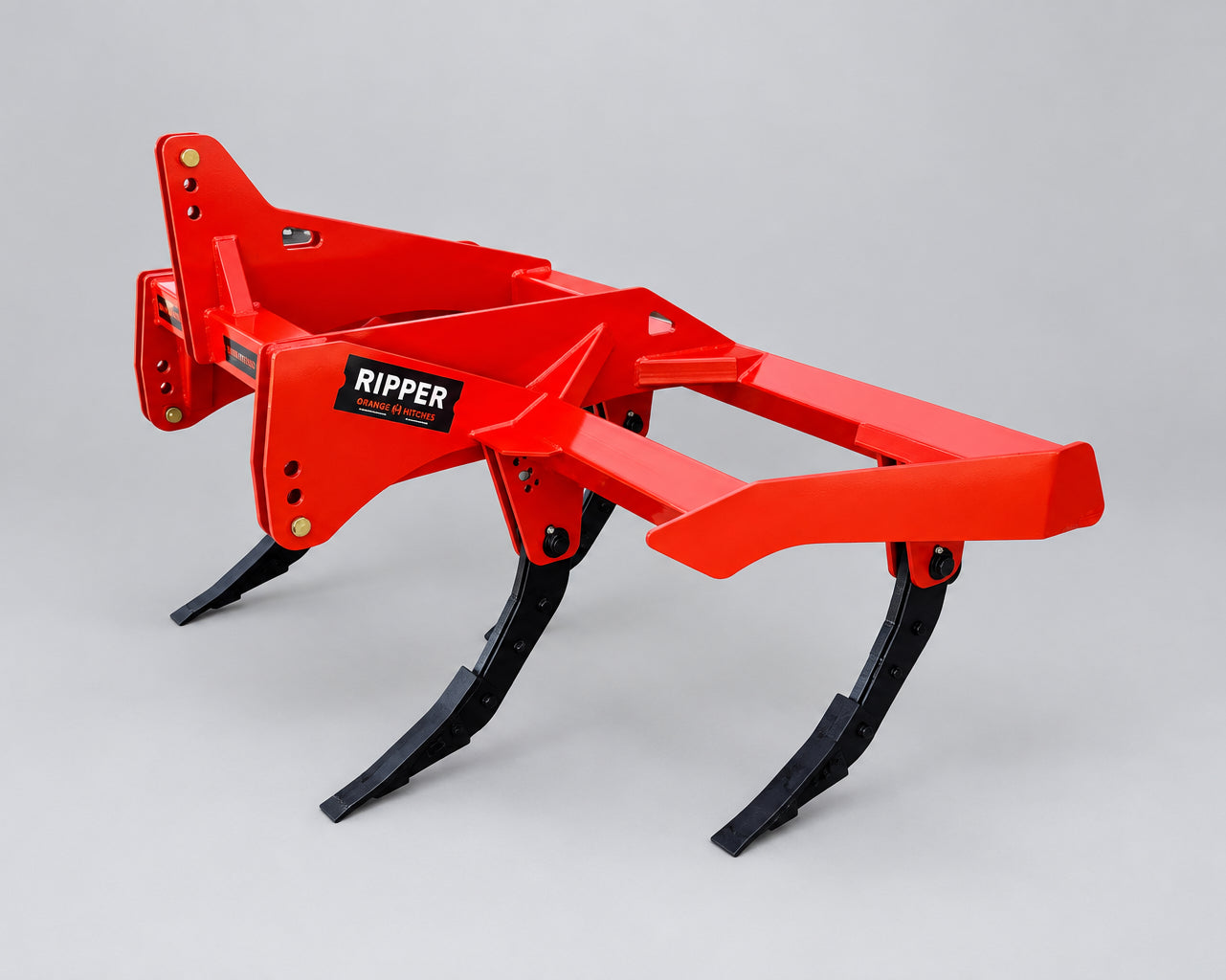

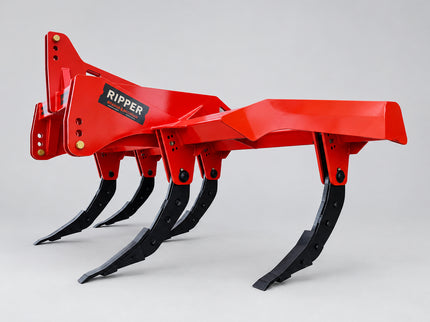

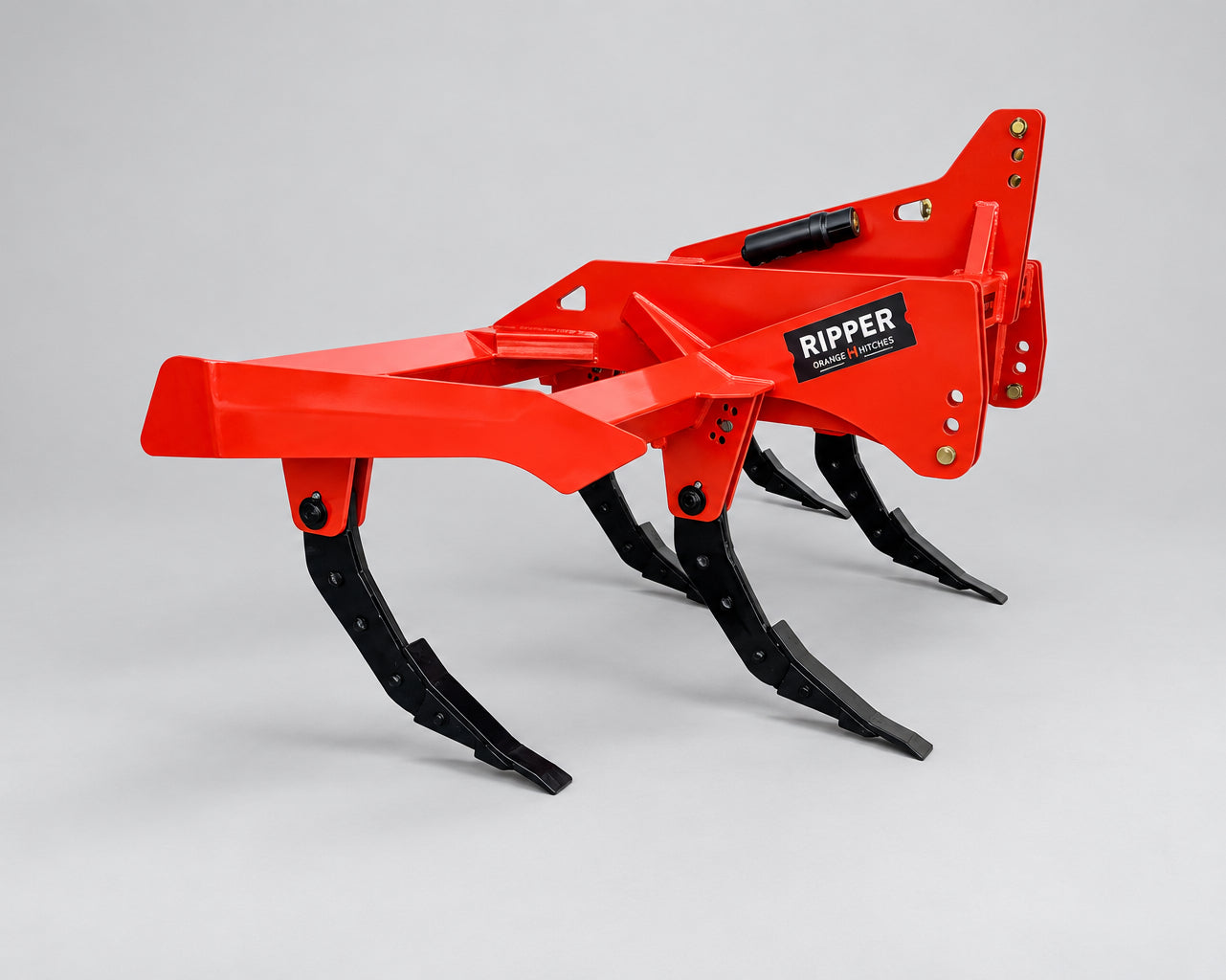

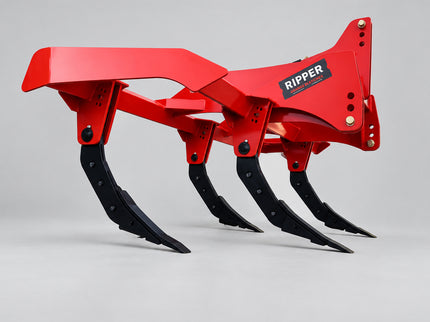

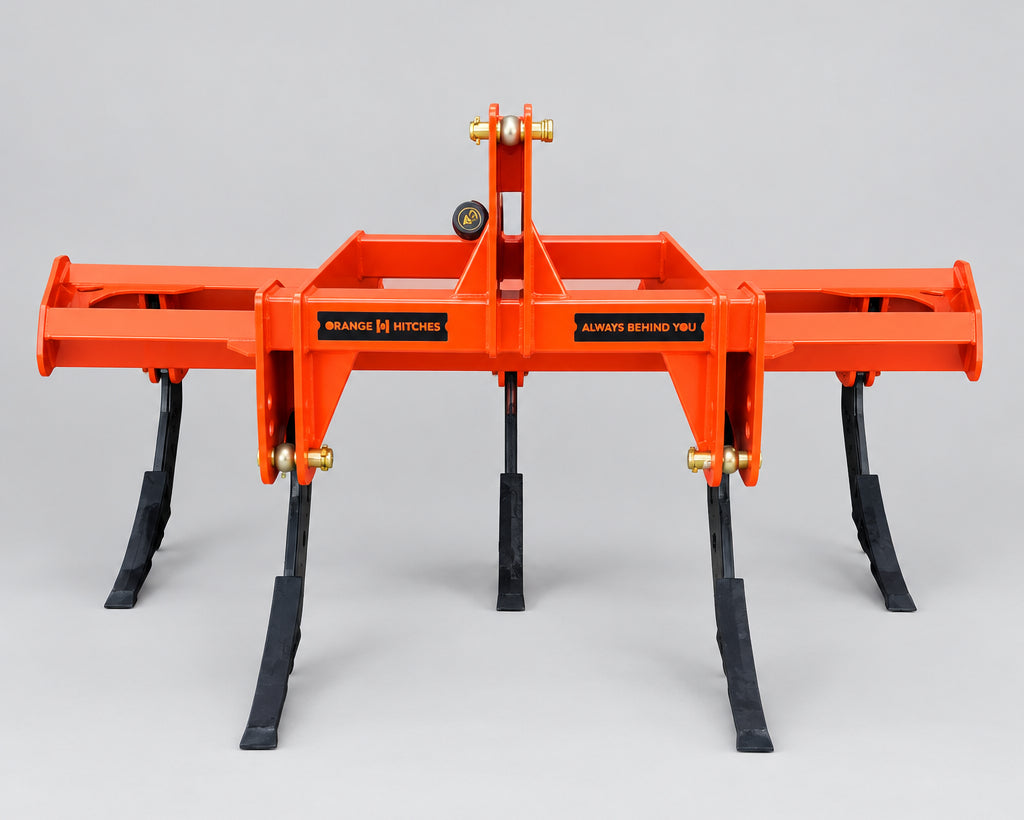

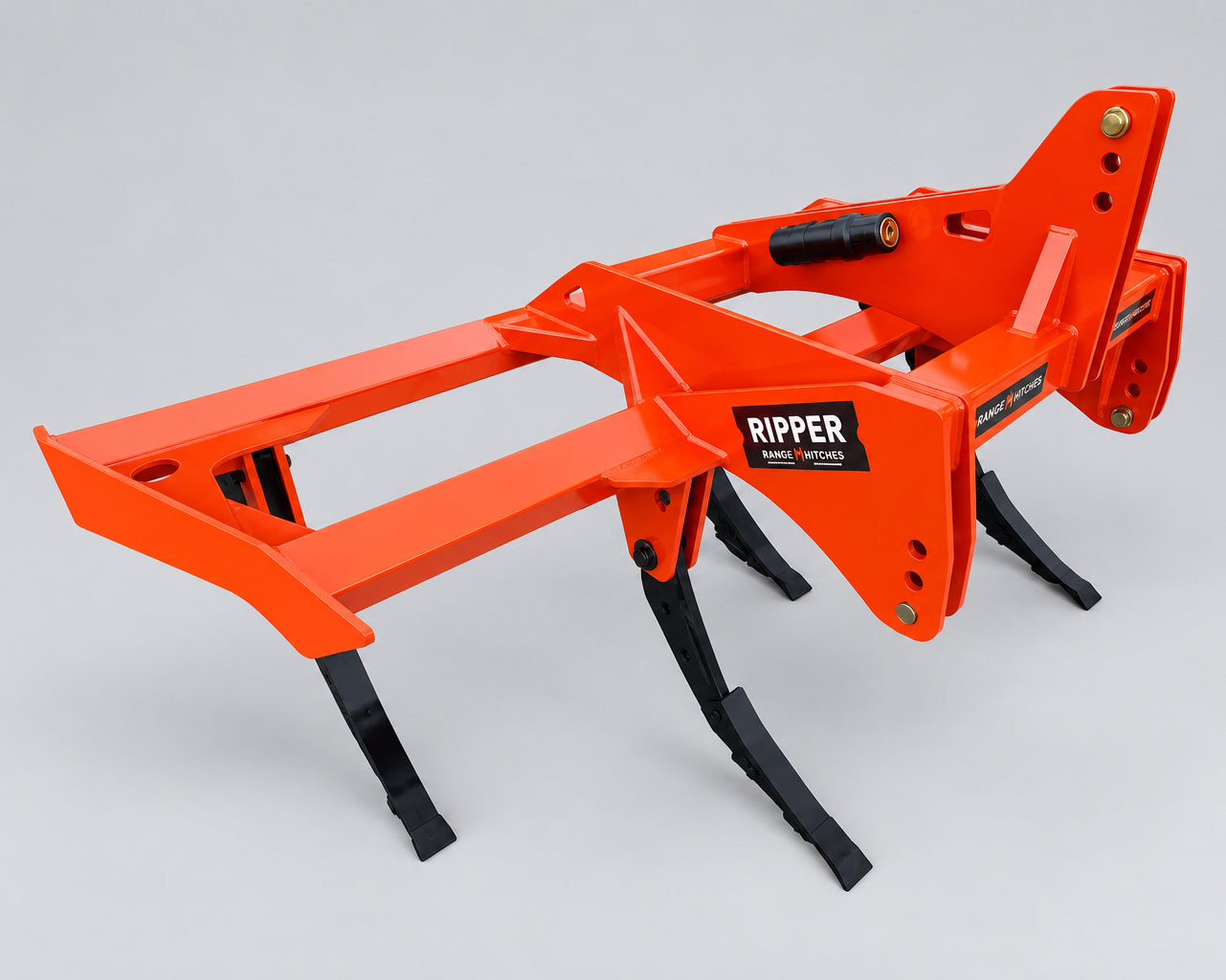

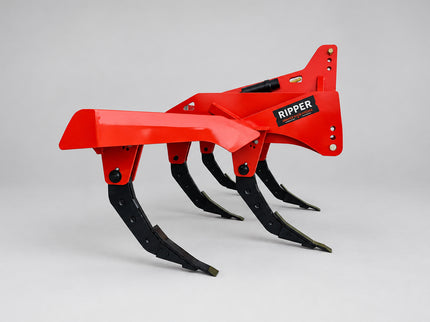

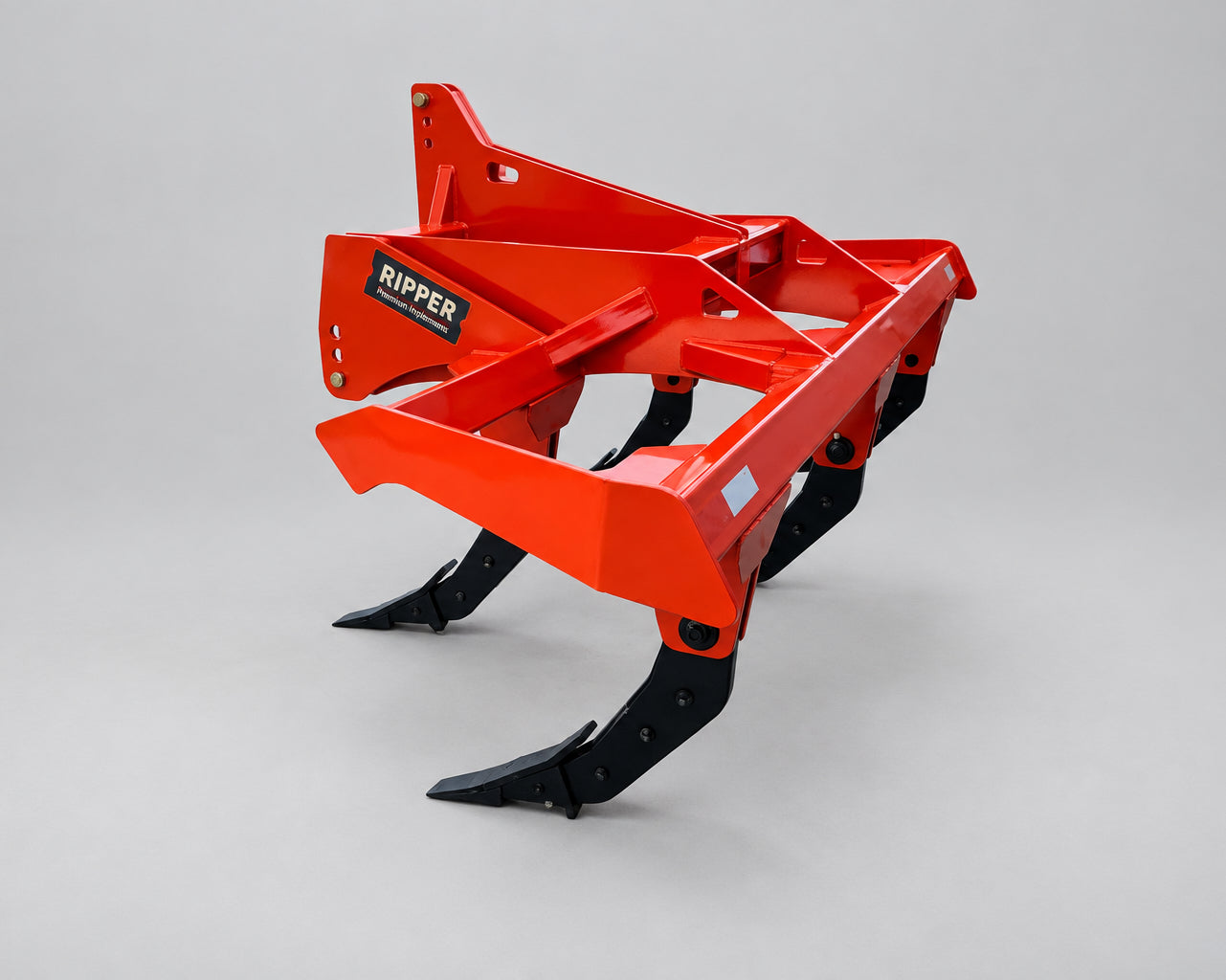

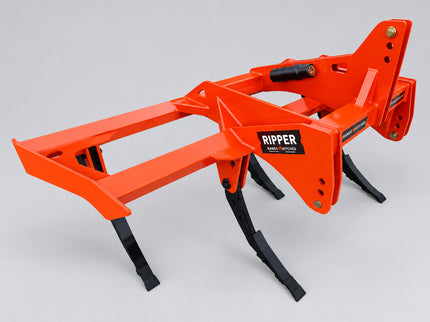

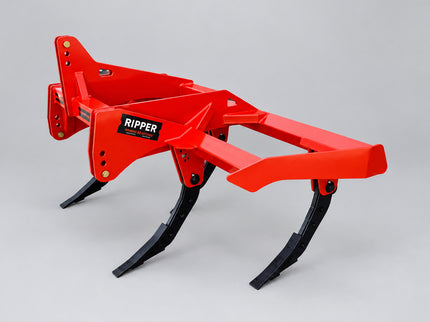

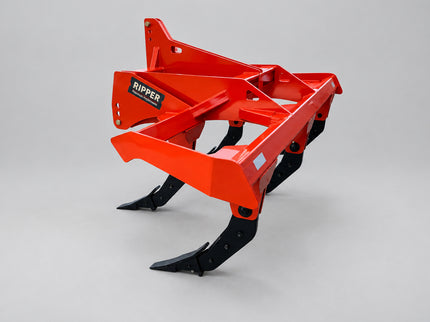

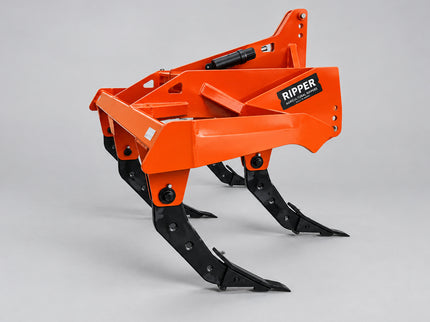

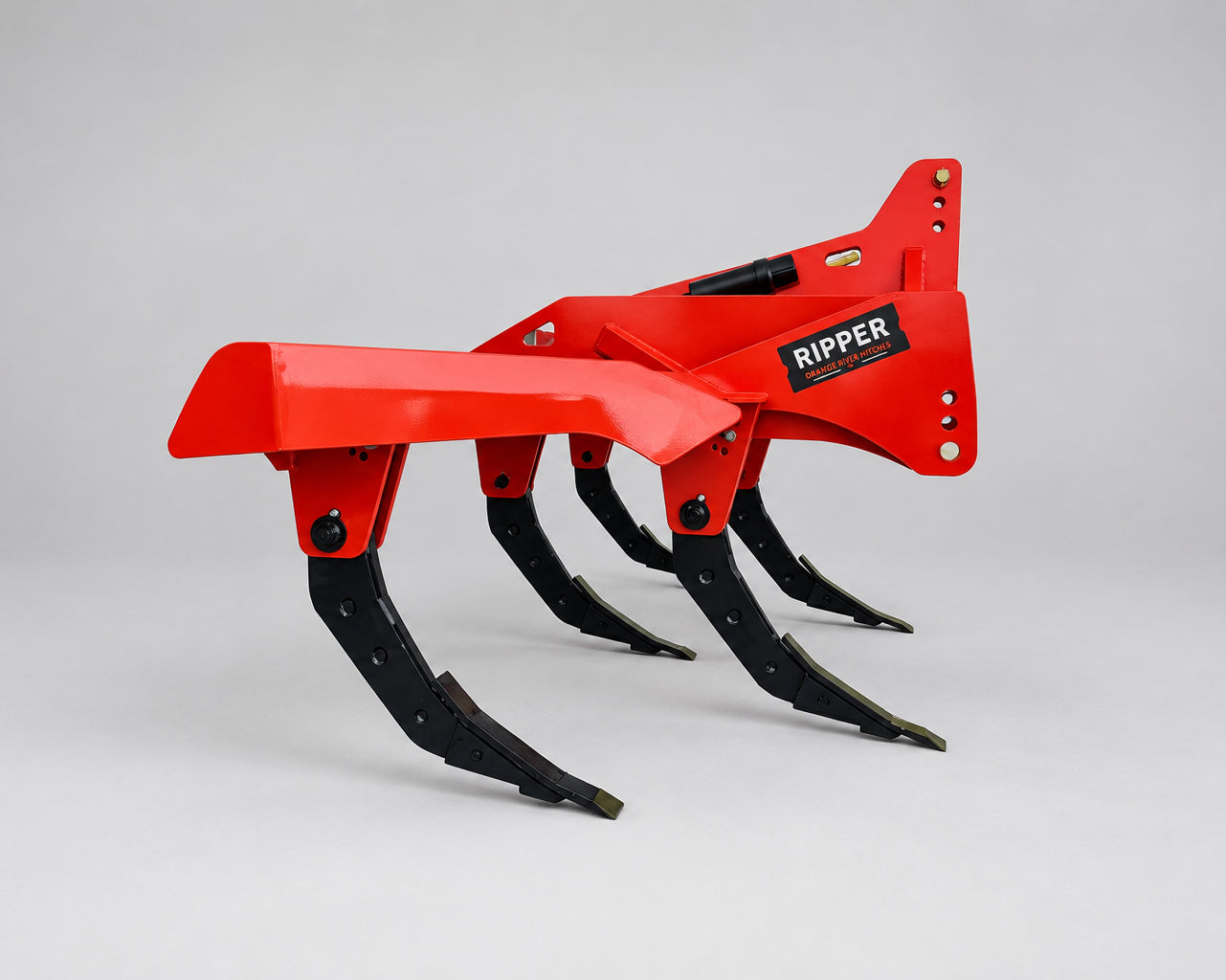

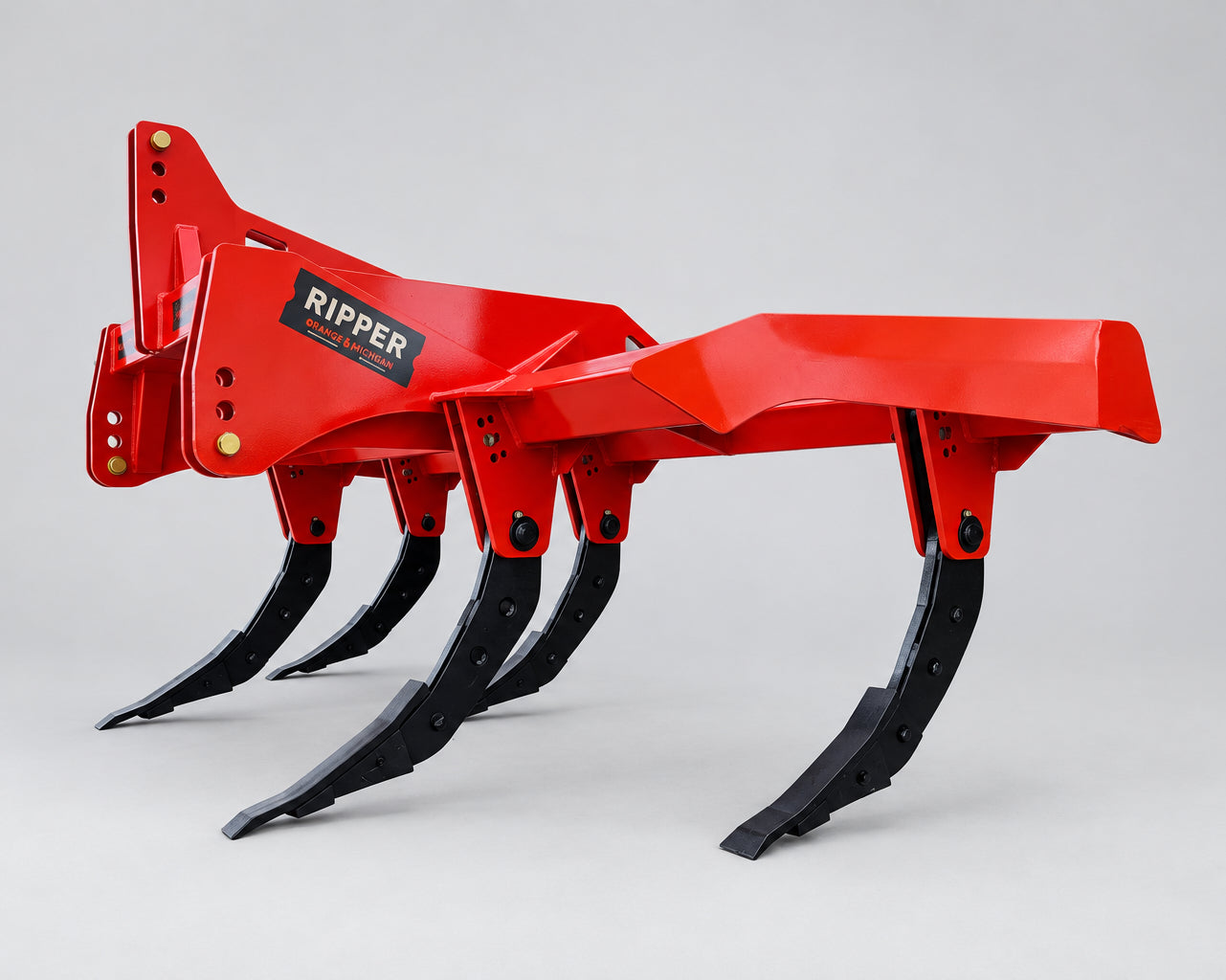

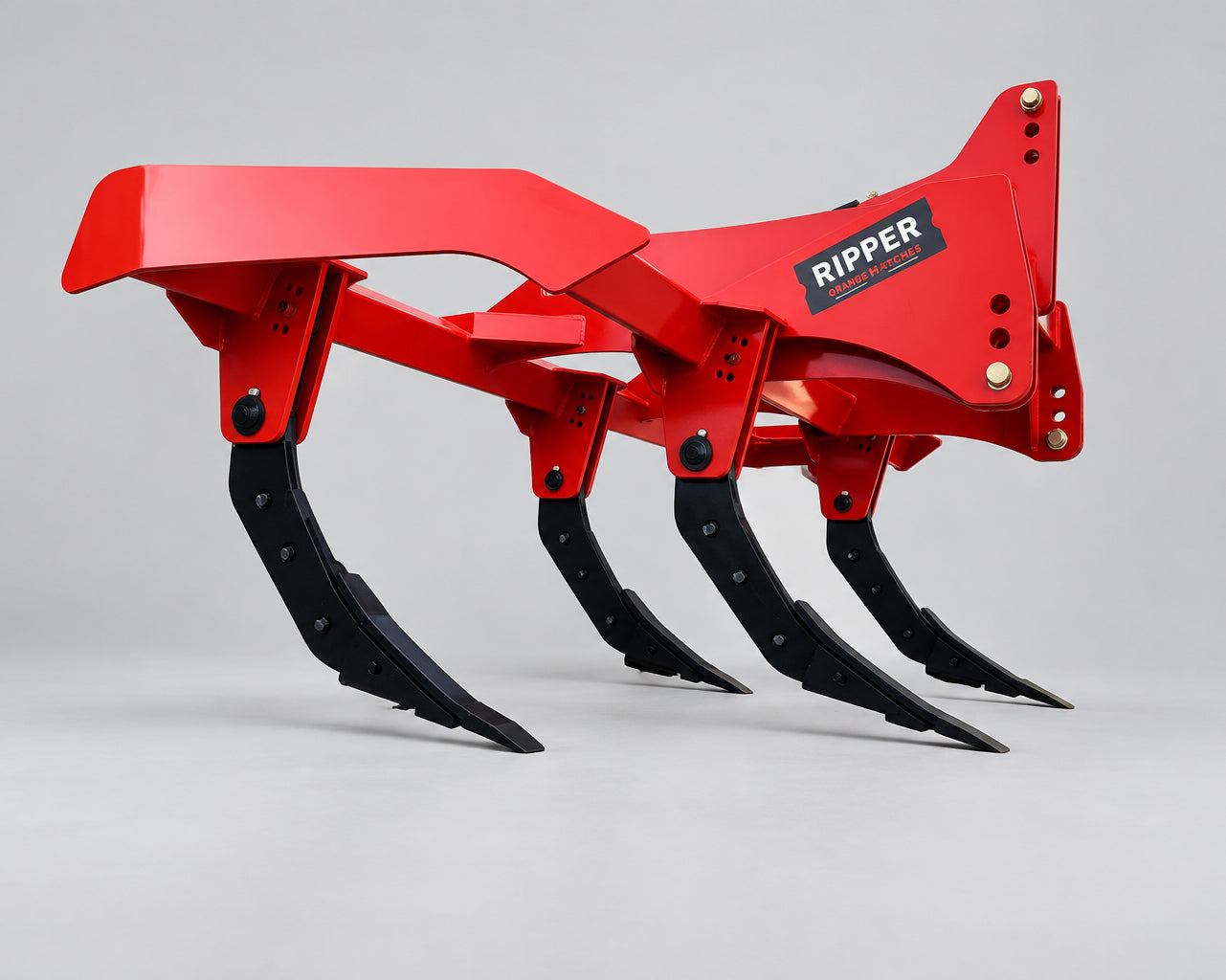

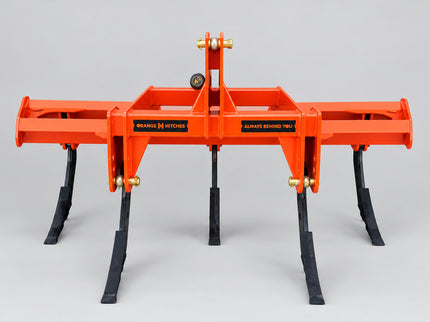

R300/5 XHD – Xtra Heavy Duty 5-Shank Ripper
Built for big tractors, hard ground and serious ripping.
The Orange Hitches R300/5 XHD is our Xtra Heavy Duty 5-shank ripper, designed for high-horsepower tractors 140hp to 300hp and demanding deep-ripping applications.
Built around five massive 36mm thick shanks with genuine Alpego Cracker replaceable ripper points, the R300/5 XHD provides a 2.5m ripping width with 610mm shank spacing and a maximum ripping depth of 500mm.

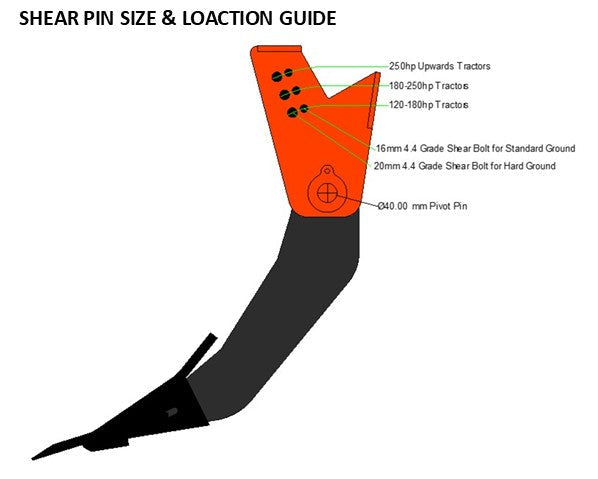

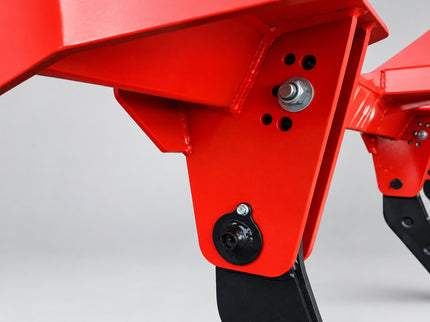

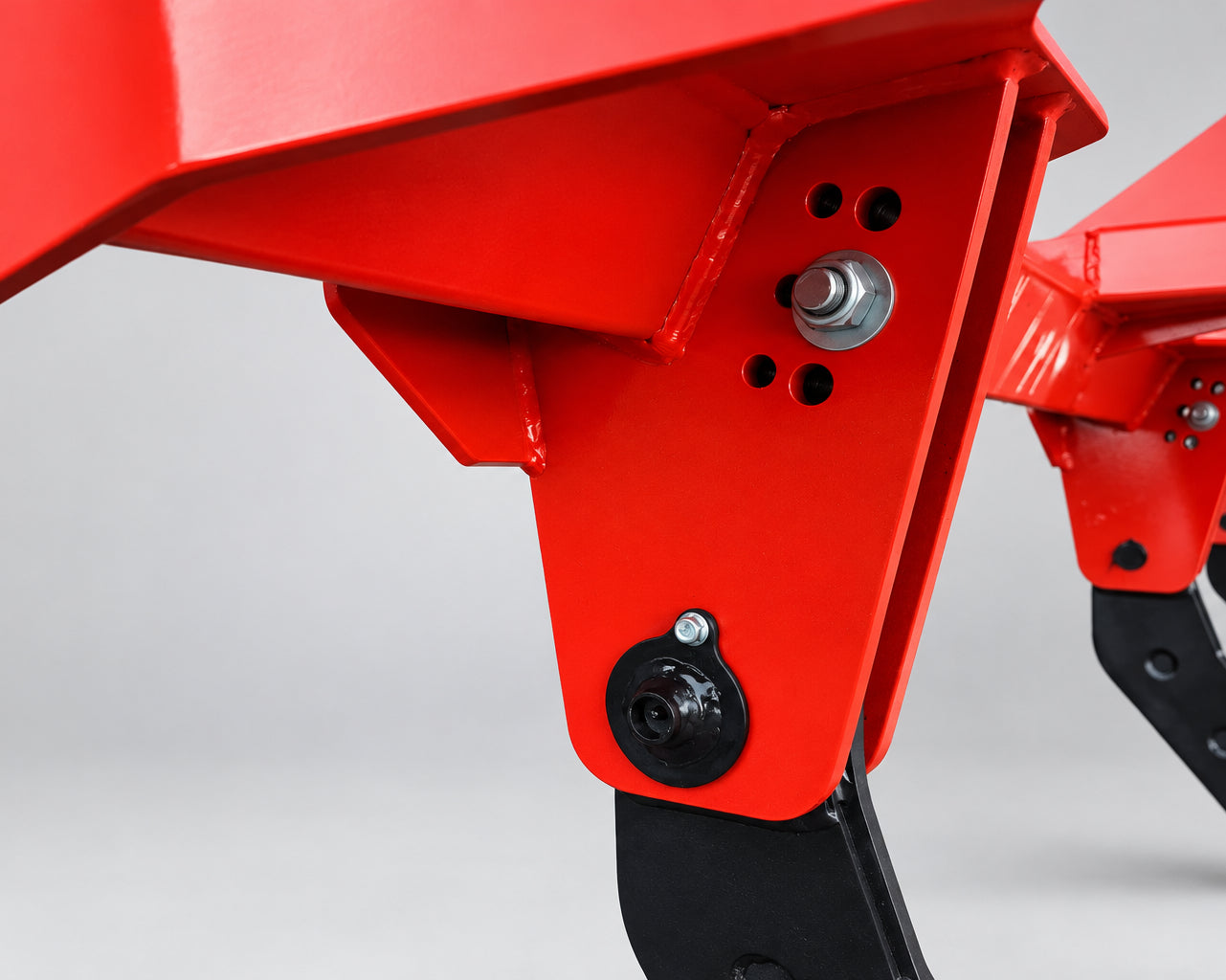

Each shank features individual shear-pin protection, shear pin size and hole options depending on tractor horse power and ground type, this is to help protect the ripper and tractor when an immovable obstruction is encountered; spare shear pins supplied in plastic holder attached to ripper.
At 720kg, with a heavily reinforced frame and Category 3 three-point linkage, this is a serious ripper built for hard ground, compacted soils and demanding agricultural applications.
Finished in our durable 2-pack polyurethane paint system and supplied complete with hitch pins, balls and linch pins.
Specifications
-
Overall width: 3122mm
-
Overall height: 1530mm
-
Overall depth: 1517mm
-
Ripping width: 2500mm
-
Shanks: 5 × 36mm thick XHD
-
Shank spacing: 610mm
-
Maximum ripping depth: 500mm
-
Ripper points: Alpego Cracker replaceable points
-
Protection: Individual shear pins
-
Spare shear pins: Supplied
-

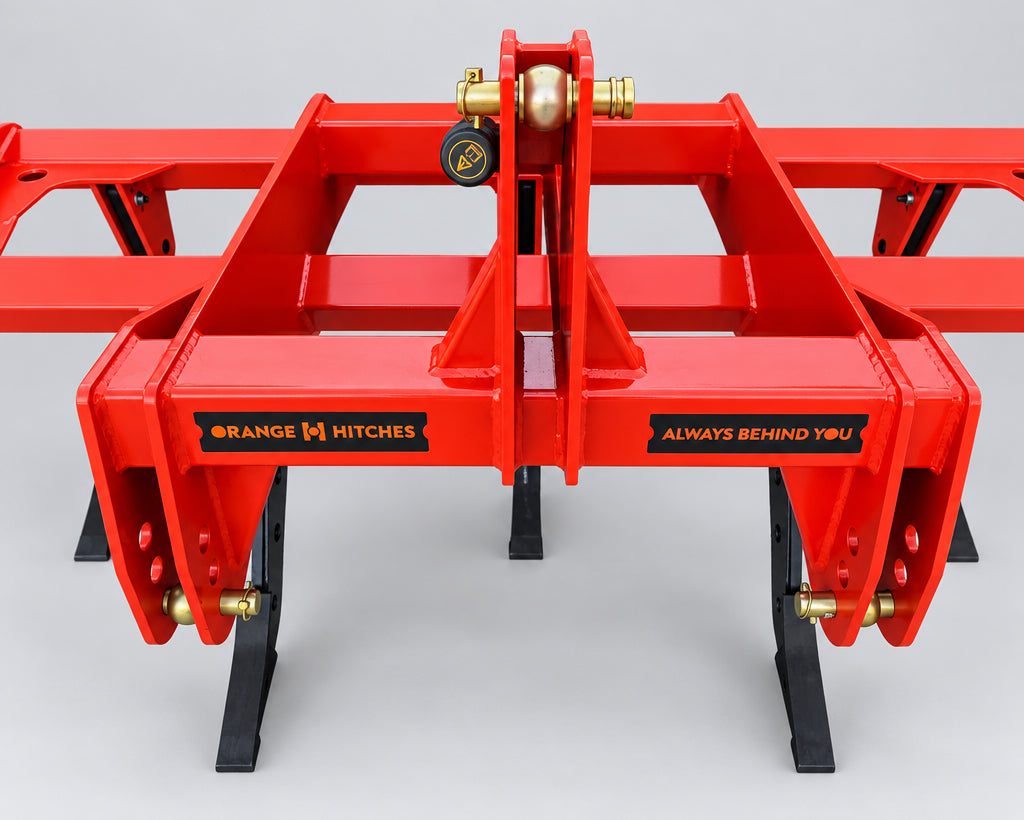

Linkage: Category 3 Three Point Linkage
-
Hitch pins, balls & linch pins: Included
-
Weight: 720kg
-
Finish: 2-pack polyurethane paint process
- Designed and manufactured in New Zealand
Built for the way you work.
Talk to us about your tractor, ground conditions and application, and we’ll make sure your ripper is configured for the job.
SHIPPING
- FREE delivery Tasman region
- The rest of NZ calculated at check out
BUILT TO ORDER - 20 Day Promise
We build this attachment to order; we promise to have it ready to ship in 20 Working Days! If you need it urgently, then let us know, we can usually shuffle things around to meet your deadline.
